$ 64.05
1-2 weeks delivery time
-
+

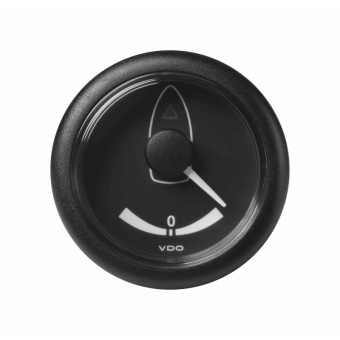

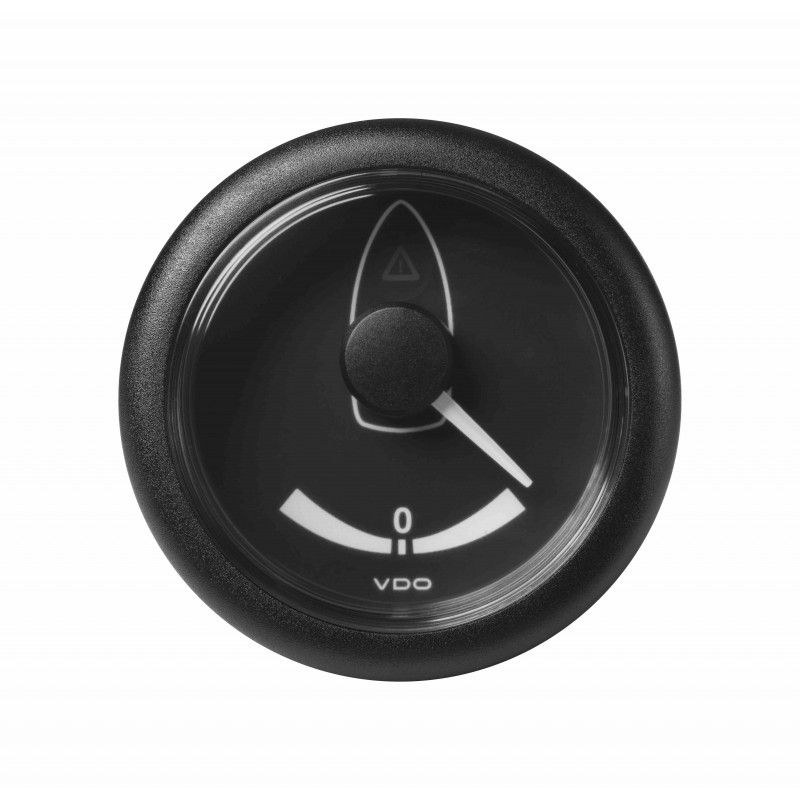

The VDO A2C60001065 ViewLine rudder angle indicator is a 52 mm black navigation gauge that displays real-time rudder position from -40° to +40° to support confident helm control and precise maneuvering. Designed for marine dashboards, it uses an analog 3–180 Ohm input signal and operates on 12–24 V DC, with amber dial illumination for clear readability and a front protection rating of IP67 for dependable performance in demanding onboard environments.
- Description
- Ask a Question
-
ViewLine 52 mm Rudder Angle Gauge for Precise Helm Feedback
The VDO A2C60001065 is a ViewLine rudder angle indicator built for marine navigation panels, giving the helmsman an immediate, intuitive display of rudder position. With a clear -40° to +40° scale and a refined black dial, it helps you steer more accurately during docking, tight turns, and course corrections.
Features
- Rudder angle display: 40° - 0 - 40° (equivalent to -40° to +40°)
- Amber backlighting: amber LED, not dimmable
- Analog input: 3–180 Ohm signal
- Optional styling flexibility: clip-on bezel interchangeable; bezel ordered separately
- Integrated alerting: red LED warning light (control via positive and negative)
- Visibility support: double anti-fog plastic lens
Product Details
- Brand: VDO
- Part Number: A2C60001065
- Category: Navigation gauges
- Series: Veratron ViewLine OEM-Bulk
- Functionality: Rudder angle
- Dial color: Black
- Communication: Analog
- Cable: ordered separately
Technical Specifications
Display size 52 mm Installation hole size 52 mm (2 1/16 inch) Measurement range 40° - 0 - 40° Operating voltage 12–24 V DC (Tyco 8-pin) Analog signal 3–180 Ohm Lens Double anti-fog plastic Front protection rating IP67 (IEC 60529) Rear protection rating IP52 (IEC 60529) Mounting Central spinlock nut, 52 mm EAN Code 7640178723719 Weight 4.00 kg Packaging Veratron OEM bulk pack (10 pieces)
Compatibility
- Veratron Navigation
- Veratron ViewLine OEM-Bulk
-
