ID
1369931
$ 64.05
1-2 weeks delivery time
-
+

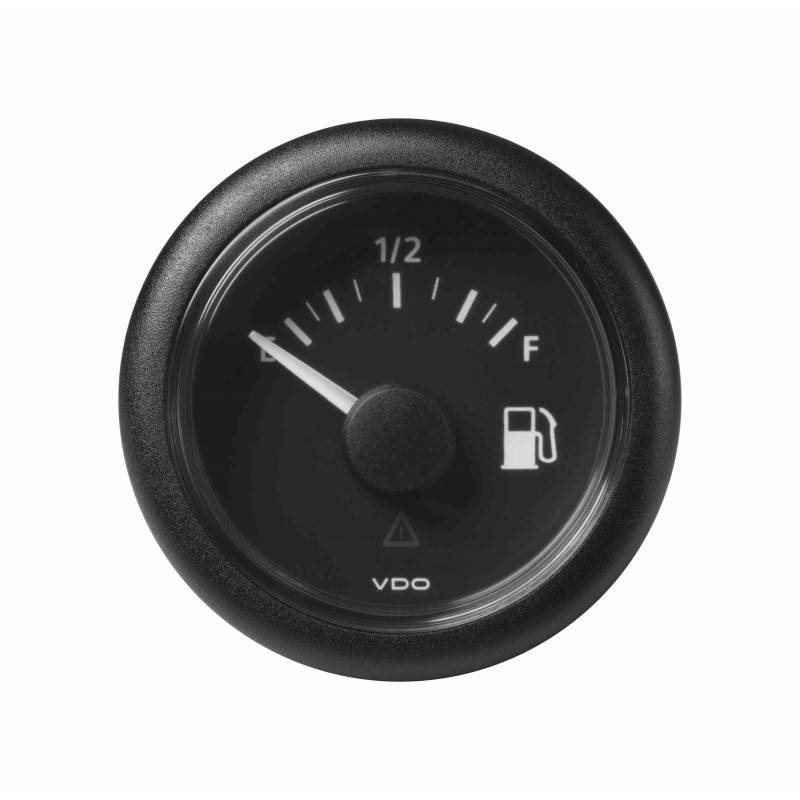

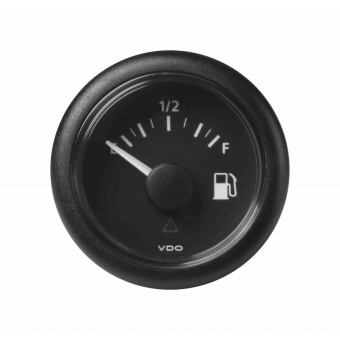

The VDO ViewLine fuel level gauge A2C60001052 is a compact 52 mm dashboard instrument built to provide clear E-to-F fuel readings on both 12 V and 24 V electrical systems. Designed for analog level measurement, it supports a 3–180 ohm sender range for EU lever-arm type fuel sending units, combining a clean black dial with amber illumination and a front-sealed design suited to demanding installations.
- Description
- Ask a Question
-
ViewLine 52 mm Fuel Level Instrument With E to F Scale
The VDO A2C60001052 ViewLine fuel level gauge is an analog dashboard instrument that helps you monitor tank level at a glance using a clear E to F dial. Built around the 3–180 ohm input range (EU lever-arm sender type), it fits a 52 mm installation hole and supports both 12 V and 24 V systems, making it a practical upgrade or replacement for many vehicle monitoring setups.
Compatibility
- 12 V DC electrical systems
- 24 V DC electrical systems
- Analog fuel level sending units, 3 ohm empty to 180 ohm full
- EU lever-arm type fuel level sender signal (3–180 ohm)
Product Details
- Brand: VDO
- Product Line: ViewLine (Veratron ViewLine OEM-Bulk)
- Component Type: Fuel level gauge (analog)
- Dial: Black, E to F scale
- Illumination: Amber LED, not dimmable
- Warning Light: Red LED, control via positive and negative
- Bezel: Optional, interchangeable clip-on
- Notes: Cable and bezel ordered separately
Technical Specifications
Part Number A2C60001052 Category Fuel level gauges Communication Analog Operating Voltage 12–24 V DC Input Range Empty: 3 ohm / Full: 180 ohm Dial Scale Single (E to F) Installation Hole Size 52 mm (2 1/16 inch) Mounting Central spinlock nut, 52 mm Lens Double plastic, anti-fog IP Rating (Front) IP67 (IEC 60529) IP Rating (Rear) IP52 (IEC 60529) Connector Type Tyco 8-pin MQS (data and power supply) EAN 7640178728059 Packaging Veratron 10 pieces OEM bulk Weight 4.00 kg
Features
- Clear E to F indication for quick fuel-status checks while driving
- Designed for 3–180 ohm sender signals to match common EU lever-arm setups
- Works on 12 V and 24 V installations for broad system coverage
- Amber backlighting supports night-time readability with a clean black-dial appearance
- Front IP67 sealing helps protect the instrument in exposed mounting locations
-
