ID
1369930
$ 64.05
1-2 weeks delivery time
-
+
The VDO ViewLine fuel level gauge A2C60001051 is a 52 mm black analog instrument built for clear, real-time tank level indication from empty to full. Designed around a 90–0 ohm tubular sender signal (empty 60–90 ohm, full 0 ohm), it combines a highly readable ViewLine dial with amber illumination and a red LED warning light for confident monitoring in industrial or automotive installations. With 12–24 V DC operation, a clip-on interchangeable bezel concept (bezel and cable ordered separately), and robust front sealing, this gauge supports reliable fuel management and day-to-day operational control.
- Description
- Ask a Question
-

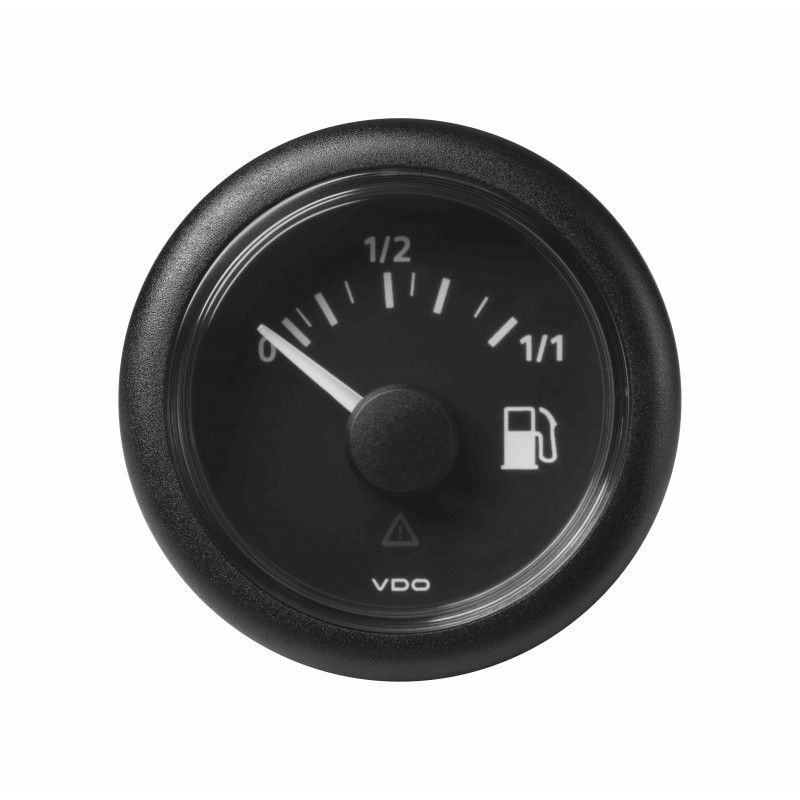

VDO ViewLine 52 mm Fuel Level Instrument in Black
The VDO A2C60001051 is a ViewLine fuel level gauge designed to provide a clear, immediate indication of tank level from empty to full. Built as an analog gauge for 52 mm panel installations, it is intended for fuel monitoring in industrial and automotive use, pairing a high-contrast black dial with amber LED dial illumination for strong readability.
Compatibility
- Industrial fuel level monitoring applications
- Automotive fuel level monitoring applications
Product Details
- Brand: VDO
- Series: Veratron ViewLine OEM-Bulk
- Component Type: Fuel level gauge
- Signal Type: Analog
- Dial Color: Black
- Dial Illumination: Amber LED (not dimmable)
- Warning Light: Red LED (control via + and -)
- Lens: Double anti-fog plastic
- Mounting: Central spinlock nut, 52 mm
- Bezel: Optional; interchangeable clip-on
- Cable and Bezel: Ordered separately
- EAN Code: 7640178723580
- Packaging: 10 Pieces OEM bulk
- Weight: 4.00 kg
Technical Specifications
Part Number A2C60001051 Installation Diameter 52 mm (2 1/16 Inch) Measurement Range 0 to 1/1 Sender Input EU tubular sender 90–0 Ohm; Empty: 60–90 Ohm; Full: 0 Ohm Operating Voltage 12–24 Volt DC Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 (IEC 60529) Connector Tyco 8-Pin MQS
Features
- Accurate fuel level indication from empty to full on a single-scale dial
- Optimized for tubular sender signals in the 90–0 ohm range
- Amber illumination supports clear visibility in low-light operating conditions
- Front IP67 sealing helps protect the instrument face in demanding environments
- 52 mm format fits common instrument panels for clean, professional installs
- Clip-on bezel concept allows cosmetic or layout changes when a compatible bezel is selected
-
