ID
1369925
$ 93.40
1-2 weeks delivery time
-
+
The VDO ViewLine engine oil temperature gauge A2C59514233 is a precision dashboard instrument for engine monitoring, providing real-time oil temperature indication from +50°C to +150°C to help you keep operating temperatures under control. Designed by Veratron with a clean white 52 mm display, amber dial backlighting, and a red warning light, it integrates neatly into performance and reliability-focused cockpits while using a Veratron NTC thermistor sender input (322.8–18.6 Ohm) for accurate measurement.
- Description
- Ask a Question
-

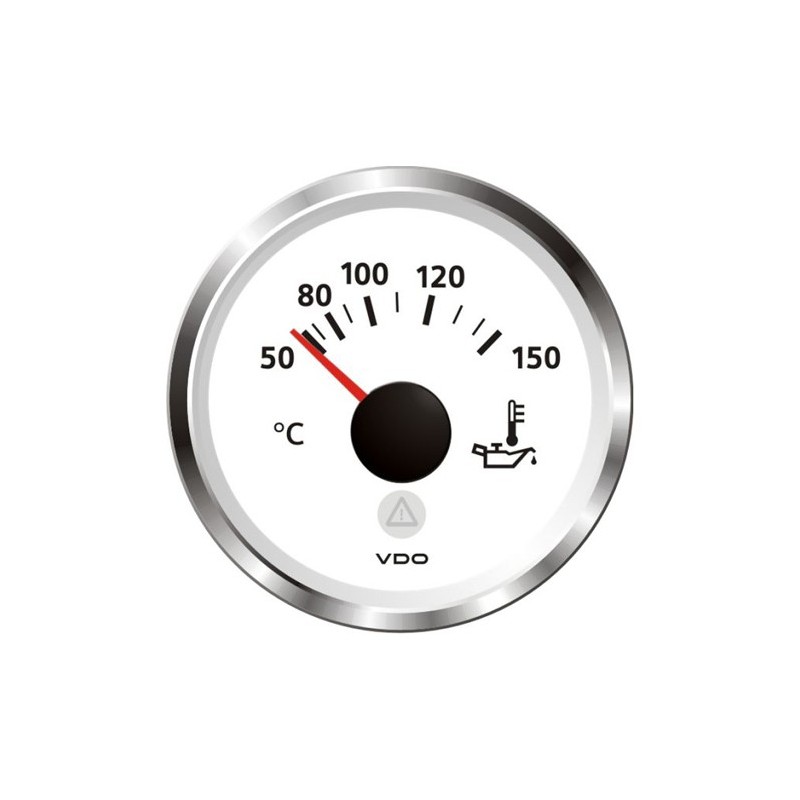

ViewLine Oil Temperature Instrument in White 52 mm
The VDO A2C59514233 ViewLine engine oil temperature gauge by Veratron is built for clear, dependable engine monitoring. With a +50°C to +150°C scale, it helps you track oil temperature trends during warm-up, sustained load, and high-performance driving, while the white dial and modern styling bring a clean OEM-style finish to your dashboard.
Features
- Measures engine oil temperature from +50°C to +150°C for confident thermal monitoring
- 52 mm panel installation format for streamlined dash integration
- Amber LED dial backlight (605 nm) with red pointer backlighting
- Red warning LED (632 nm) for clear alert visibility
- Dual lens with anti-glare and anti-fog properties for improved readability
- Interchangeable triangular chrome bezel (clip-on)
- Front protection class IP67 (IEC 60529) for durable panel operation
Compatibility
- Veratron ViewLine Marine series (52 mm panel format)
- Veratron NTC thermistor sender input: 322.8–18.6 Ohm
- 10 to 32 Volt DC electrical systems
Technical Specifications
Part Number A2C59514233 Function Engine oil temperature Measurement Range +50°C to +150°C Dial Color White Panel Hole Diameter 52 mm (2 1/16 Inch) Outside Diameter 59 mm (2 1/3 Inch) Installation Depth 50 mm Locking Height with Spinlock Nut 0.5 mm to 20 mm Locking Height with Bracket 2 mm to 15 mm (Optional) Flush Mount Optional kit A2C59510864 Sensor Input Veratron NTC thermistor 322.8–18.6 Ohm Accuracy < 3.6 angular degrees Deflection Angle 90° Connection Hirschmann 8-pin MQS connector Connector Type Tyco 8-pin MQS Operating Voltage 10 to 32 Volt DC Operating Voltage 8 to 32 Volt DC Current Consumption < 140 mA including warning LED Reverse Polarity Protection Yes (5 minutes) Short Circuit Protection Yes (1 minute) Dial Illumination Amber LED backlight 605 nm Pointer Illumination Red LED backlight Warning LED Red (632 nm) Lens Dual, anti-glare, anti-fog Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Relative Humidity Maximum 95% Operating Temperature -30°C to +70°C (chrome bezel) CE Yes DNV GL Certification Yes Mechanical Shock Continuous 25G, 6 ms, 1 Hz Mechanical Single Shock 100G, 11 ms Free Fall Test 1 meter, 3x Housing Flame Retarding UL94-VD EAN Code 7640178727793 HS Code 90251900 Weight 0.45 kg
Product Details
- Brand: VDO
- Series: Veratron ViewLine
- Category: Temperature gauges
- Display Style: White dial with interchangeable triangular chrome bezel
Retail Package Contents
- Veratron ViewLine White A2C59514233 engine oil temperature gauge
- Spinlock nut
- Interchangeable triangular chrome bezel
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Engine oil temperature sender not included
-
