ID
1369926
$ 93.40
1-2 weeks delivery time
-
+

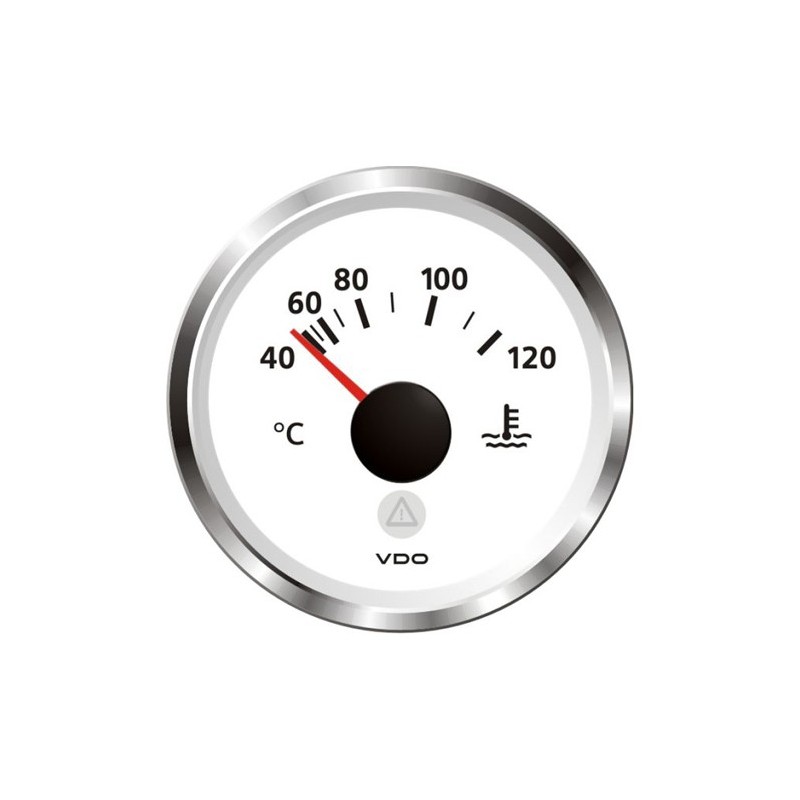

The VDO A2C59514239 ViewLine coolant temperature gauge is a 52 mm white-dial instrument built for real-time coolant temperature monitoring from +40°C to +120°C, helping you spot overheating early and keep engine operation under control. Designed for Veratron engine monitoring setups, it uses a Veratron NTC thermistor input (287.4–22.7 Ohm), runs on 10–32 V DC, and connects via an 8-pin MQS connector for a clean, reliable installation. A dual anti-fog lens and integrated red warning LED support clear, confident reading in demanding conditions.
- Description
- Ask a Question
-
VDO ViewLine Coolant Temperature Instrument A2C59514239
The VDO A2C59514239 is a ViewLine-series coolant temperature gauge with a clean white dial and a 52 mm mounting format for professional dashboard installations. With a measuring range of +40°C to +120°C, it provides fast, easy-to-read temperature information to support engine protection and consistent performance. The design includes a dual anti-glare, anti-fog lens and a red warning LED for high visibility in real operating conditions.
Compatibility
- Veratron ViewLine Marine
- Veratron ViewLine Retail
- Veratron engine monitoring systems (analog signal input)
- 10–32 V DC electrical systems
Product Details
- Brand: VDO
- Part Number: A2C59514239
- Component Type: Coolant temperature gauge
- Dial Color: White
- Category: Temperature gauges
- Series: Veratron ViewLine Retail
- Communication: Analog
- Sender: Not included
Features
- Monitors coolant temperature in real time to support overheating prevention
- Dual lens design helps maintain clarity and readability
- Integrated red warning LED for immediate visual alerting
- Interchangeable chrome triangular bezel with clip-on mounting
- Supplied with installation accessories for straightforward panel mounting
Technical Specifications
Temperature Range +40°C to +120°C Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Operating Voltage 10 to 32 V DC Current Consumption < 140 mA (including warning LED) Sensor Input Veratron NTC thermistor 287.4–22.7 Ohm Connection Hirschmann 8-pin MQS connector Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Deflection Angle 90° Dial Illumination Amber LED backlight 605 nm (not dimmable) Pointer Red pointer with red backlight Warning LED Red (632 nm), control via positive and negative Reverse Polarity Protection Yes (5 minutes) Short Circuit Protection Yes (1 minute) Certifications CE, DNV GL EAN 7640178727816 Weight 0.45 kg
Retail Package Contents
- Veratron ViewLine white coolant temperature gauge (A2C59514239)
- Spinlock nut
- Chrome triangular bezel (interchangeable)
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
-
