The ViewLine engine oil pressure gauge VDO A2C59514213 is a 52 mm white instrument designed to display clear, accurate oil pressure readings from 0 to 5 bar for engine monitoring. Built for demanding automotive and marine-style dashboard installations, it uses a 10 to 184 Ohm pressure sender signal input and includes a red warning LED to help you spot critical pressure conditions quickly, while the dual anti-fog lens and IP-rated front protection support dependable visibility and durability.
- Description
- Ask a Question
-

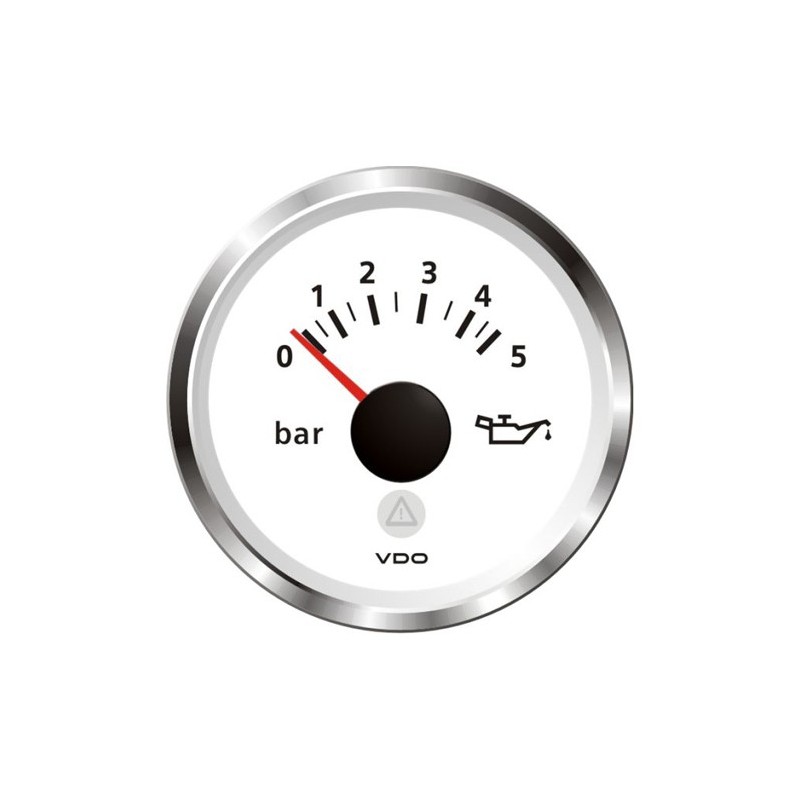

ViewLine White 52 mm Engine Oil Pressure Gauge 0 to 5 Bar
The VDO A2C59514213 from the Veratron ViewLine series is an engine oil pressure gauge designed to give you a fast, readable view of oil pressure while driving or operating. Intended for engine monitoring on dashboards, it displays a 0 to 5 bar range and is designed to work with a 10 to 184 Ohm pressure sender input, helping you keep oil pressure within safe operating limits.
Compatibility
- Engine oil pressure monitoring installations using a Veratron pressure sender signal input of 10 to 184 Ohm
- Veratron ViewLine Marine instrumentation setups
- Automotive dashboard installations using 52 mm gauge mounting
Product Details
- Brand: VDO
- Series: Veratron ViewLine
- Component Type: Engine oil pressure gauge
- Display Style: White dial with LED backlighting and red warning LED
- Typical System Location: Dashboard engine monitoring instrumentation
Technical Specifications
Pressure Range 0 to 5 bar Dial Color White Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Sensor Signal Input Veratron pressure sender 10 to 184 Ohm Accuracy < 3.6 angular degrees Connection Hirschmann 8 pins MQS connector Operating Voltage 8 to 32 Volt DC Current Consumption < 140 mA including warning LED Reverse Polarity Protection Yes, 5 minutes Short Circuit Protection Yes, 1 minute Deflection Angle 90° Dial Illumination Amber LED backlight 605 nm Pointer Red LED backlight Warning LED Red (632 nm) Lens Dual, anti-glare, anti-fog Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30°C to +70°C (chrome bezel) Certifications CE; DNV GL Weight 0.45 kg EAN 7640178727762 HS Code 90262000
Features
- Clear oil pressure readout to support day-to-day engine protection and diagnostics
- 0 to 5 bar scale for straightforward monitoring of vital lubrication system performance
- Dual anti-fog lens helps maintain readability in changing temperature and humidity conditions
- Built-in warning LED provides an additional visual alert for critical conditions
- Designed for robust installations with IP-rated front protection
Retail Package Contents
- Veratron ViewLine white engine oil pressure gauge (A2C59514213)
- Spinlock nut
- Interchangeable triangular chrome bezel
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron pressure sender not included
-
