ID
1369923
$ 86.85
1-2 weeks delivery time
-
+
The VDO A2C59514194 ViewLine engine oil pressure gauge is a compact 52 mm white instrument designed for reliable engine monitoring, displaying oil pressure from 0 to 150 PSI with a clear, modern dial. Built for dependable dashboard integration in ViewLine monitoring systems, it uses an analog pressure sender input (10 to 184 Ohm) and supports 8 to 32 V DC operation, combining durable protection ratings and easy mounting for confident, everyday pressure supervision.
- Description
- Ask a Question
-

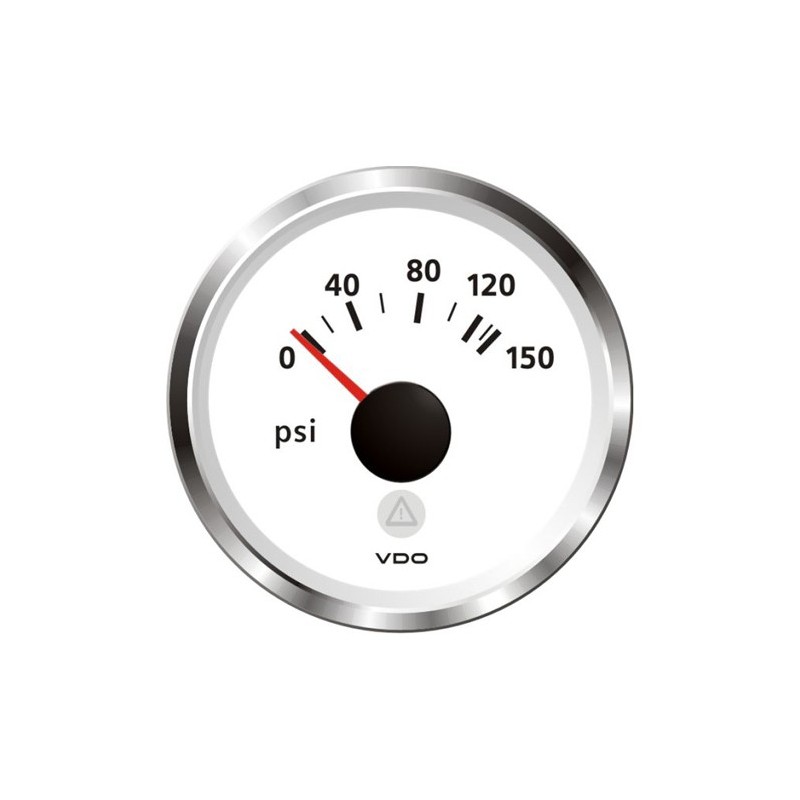

ViewLine 52 mm Engine Oil Pressure Gauge 0 to 150 PSI
The VDO A2C59514194 ViewLine engine oil pressure gauge is a white, 52 mm dashboard instrument designed to keep oil pressure visible at a glance. As part of an engine monitoring setup, it helps you track lubrication system health during start-up, cruising, and load changes by displaying 0 to 150 PSI on a clean, easy-to-read scale.
Compatibility
- Veratron ViewLine Marine instrumentation systems
- Engine monitoring dashboards using a 52 mm (2 1/16 inch) installation hole
- Systems using an analog oil pressure sender signal input of 10 to 184 Ohm
Technical Specifications
Part Number A2C59514194 Function Engine oil pressure Pressure Range 0 to 150 PSI Dial Color White Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Sensor Signal Input Pressure sender 10 to 184 Ohm Accuracy < 3.6 angular degrees Connection Hirschmann 8-pin MQS connector Operating Voltage 8 to 32 V DC Current Consumption < 140 mA (including warning LED) Reverse Polarity Protection Yes (5 minutes) Short Circuit Protection Yes (1 minute) Deflection Angle 90° Dial Illumination Amber LED backlight (605 nm) Pointer Lighting Red LED backlight Warning LED Red (632 nm) Programming Veratron USB software kit Lens Dual anti-glare, anti-fog Standard Bezel Triangular chrome (interchangeable) Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Relative Humidity Maximum 95% Operating Temperature -30°C to +70°C (chrome bezel) CE Yes DNV GL Certification Yes Mechanical Shock Continuous 25G, 6 ms, 1 Hz Mechanical Single Shock 100G, 11 ms Free Fall Test 1 meter (3x) Housing Flame Retarding UL94-VD EAN 7640178727724 HS Code 90262000 Weight 0.45 kg
Product Details
- Brand: VDO
- Series: ViewLine
- Instrument Type: Engine oil pressure gauge
- Mounting: Central spinlock nut mounting for 52 mm installation hole
- Flush Mount: Optional kit A2C59510864
Features
- Monitors a critical lubrication parameter to support safe engine operation under load
- Dual anti-glare, anti-fog lens helps keep the dial readable in changing conditions
- IP67-rated front protection for confident use in exposed dashboard environments
- Wide 8–32 V DC supply range suits many 12 V and 24 V electrical systems
- Integrated warning LED supports quick recognition of pressure issues
- Interchangeable bezel design helps match the gauge to different helm or dashboard styles
In the Box
- Veratron ViewLine White A2C59514194 engine oil pressure gauge
- Spinlock nut
- Triangular chrome bezel (interchangeable)
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Pressure sender not included
-
