ID
1369916
$ 145.22
1-2 weeks delivery time
-
+
The VDO A2C59513444 ViewLine quartz clock is a white 52 mm panel instrument built for 18–32 V DC electrical systems, delivering clear, dependable timekeeping for dashboards and instrument panels. Designed for marine and vehicle instrumentation use, it adds a clean, modern look while supporting practical installation features such as a dual anti-glare, anti-fog lens, amber dial illumination, and robust protection ratings for reliable operation in demanding cockpit and helm environments.
- Description
- Ask a Question
-

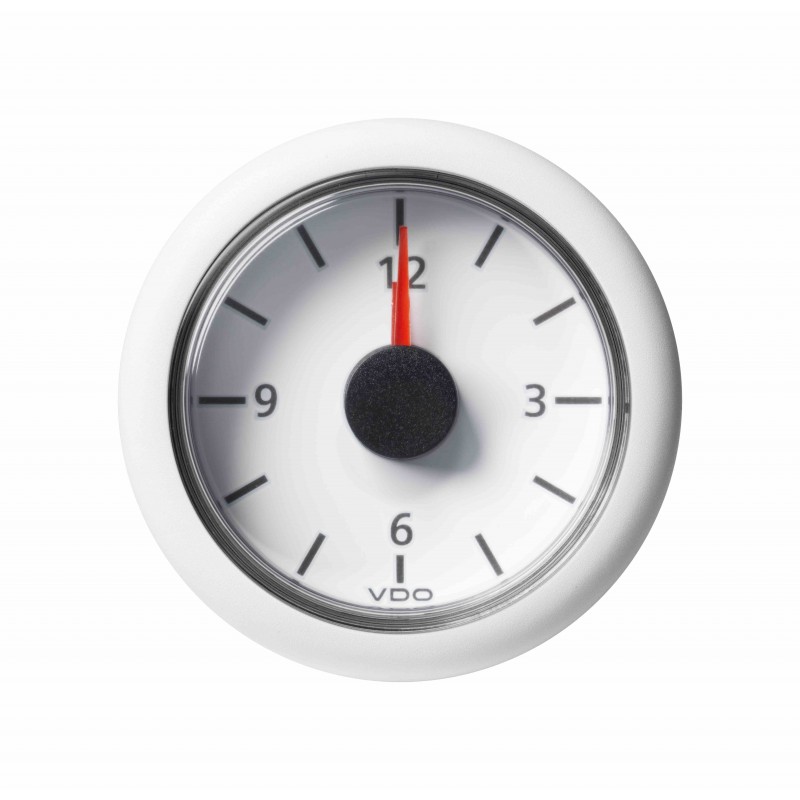

ViewLine 18–32 V Quartz Panel Clock in White, 52 mm
The VDO A2C59513444 is a ViewLine quartz clock designed as a compact 52 mm dashboard and instrument-panel timekeeping gauge. Built for 18–32 V DC systems, it combines crisp readability with a clean white dial and marine-ready design features, making it a smart fit for cockpits and helm stations on pleasure boats and yachts as well as other 24 V instrument panels.
Compatibility
- Pleasure boat cockpits
- Yacht cockpits
- Dashboards
- Instrument panels
- VDO Navigation applications
Product Details
- Brand: VDO
- Part Number: A2C59513444
- Component Type: Quartz clock (panel instrument)
- Series: ViewLine
- Dial Color: White
- Dial Scale: 0 to 12 hour
Technical Specifications
Operating Voltage 18 to 32 V DC Current Consumption < 10 mA Measurement Range 0 to 12 hour Accuracy ± 5 sec/day (at 23°C) Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Connection Hirschmann 8-pin MQS connector Dial Illumination Amber LED backlight 605 nm Pointer Illumination Red LED backlight Lens Dual anti-glare, anti-fog Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30°C to +80°C (plastic bezel) Relative Humidity Maximum 95% Reverse Polarity Protection Yes, 5 minutes (not for pin 3 and 5) Short Circuit Protection 2 hours Certifications CE; DNV GL HS Code 91040000 EAN Code 7640178722866 Weight 0.45 kg
Features
- Clear, easy-to-read dial that adds a refined look to helm and dashboard layouts
- 18–32 V DC operating range suited to many 24 V installations
- Dual lens design with anti-glare and anti-fog properties for improved visibility
- Integrated dial and pointer backlighting for consistent readability in low-light conditions
- Protection ratings designed to support reliable operation in marine cockpit environments
Retail Package Contents
- VDO ViewLine white quartz clock A2C59513444
- Spinlock nut
- Round white bezel (interchangeable)
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
Optional Accessories
- External pushbutton for time adjustment: A2C59512684
- Flush-mount kit: A2C59510864
-
