The VDO ViewLine A2C59514079 fuel level gauge is a 52 mm black-dial instrument for dependable fuel monitoring in marine and automotive fuel systems, calibrated for 90–4 Ohm senders to display empty-to-full level clearly. With amber LED dial lighting, a white LED pointer, and an integrated red warning indicator, it enhances at-a-glance awareness in any light, while IP67 front protection and built-in electrical protections support reliable operation in demanding installations.
- Description
- Ask a Question
-

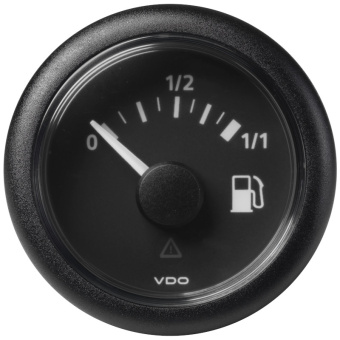

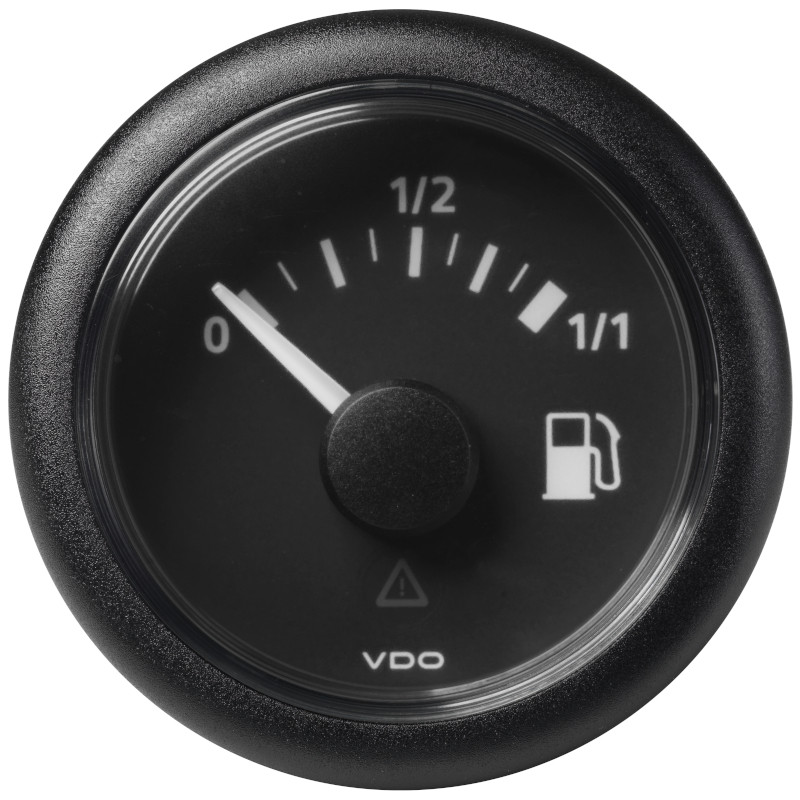

VDO ViewLine 52 mm Fuel Level Instrument in Black
Built for reliable fuel management, the VDO A2C59514079 ViewLine fuel level gauge provides clear, accurate tank level indication using a 90–4 Ohm resistance range (empty to full). Designed for both marine and automotive installations, it combines high visibility (amber dial illumination and a white-lit pointer) with a red warning LED for fuel level alerts. The sealed front (IP67) helps it stay dependable on dashboards exposed to spray, washdowns, and harsh operating environments.
Compatibility
- Marine fuel level monitoring systems using a 90–4 Ohm sender
- Automotive fuel level monitoring systems using a 90–4 Ohm sender
- Veratron dip pipe sender 90–4 Ohm EU (sensor signal input)
Product Details
- Brand: VDO
- Series: ViewLine
- Component Type: Fuel level gauge (analog)
- Typical Installation: Dashboard / instrument panel
- Display: Black dial with amber LED backlight and white LED pointer
Technical Specifications
Part Number A2C59514079 Gauge Range 0 – 1/2 – 1/1 Resistance Range 90 – 4 Ohm Resistance at Empty 90 Ohm Resistance at Full 4 Ohm Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Operating Voltage 8 – 32 V DC Current Consumption < 140 mA including warning LED Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30°C to +80°C (plastic bezel) Connector 8-pin MQS connector Protections Reverse polarity protection (5 minutes), short circuit protection (1 minute) Certifications CE, DNV GL Lens Dual anti-fog, anti-glare Warning Light Red LED Bezel Round black, interchangeable clip-on Flush Mount Optional kit A2C59510864
Features
- Accurate level indication from empty to full with 90–4 Ohm sender matching
- High-visibility illumination for night running and low-light engine rooms
- Integrated warning LED supports proactive fuel management
- IP67 sealed front helps protect the instrument face against water and dust ingress
- Designed to withstand mechanical shock and demanding operating conditions
-
