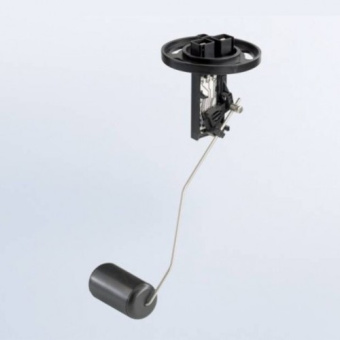

The VDO A2C59510167 WC fuel level lever arm sender is a robust in-tank measurement device built to provide stable, accurate fuel level feedback for fuel management and dash gauge systems in automotive, marine, and industrial applications. Designed for tank depths from 145 mm to 400 mm and secured by a 5-hole SAE 54 mm mounting flange, it outputs a 2 Ohm (empty) to 90 Ohm (full) resistance signal on 6 to 24 V DC systems, and adds extra protection via an integrated warning contact for low-level monitoring across fuels such as oil, petroleum, diesel, and gasoline.
- Description
- Ask a Question
-
WC Lever Arm Fuel Level Sender with Warning Contact
The VDO A2C59510167 WC fuel lever arm sender is designed to measure fuel level inside the tank and transmit a dependable resistance signal to gauges or fuel monitoring electronics. Built for flexible tank installation, it supports a wide tank depth range and uses a secure 5-hole SAE 54 mm mounting flange. An integrated warning contact adds an extra layer of monitoring for low fuel conditions, making it a strong fit for demanding automotive, marine, and industrial fuel systems.
Compatibility
- Automotive fuel level monitoring systems
- Marine fuel tanks and onboard fuel management systems
- Industrial equipment fuel tanks and level monitoring systems
Technical Specifications
Tank Depth Range 145 mm to 400 mm Mounting 5-Hole SAE 54 mm mounting flange Operating Temperature -40 °C to +70 °C Operating Voltage 6 to 24 V DC Resistance Output 2 Ohm empty, 90 Ohm full Warning Contact Yes Compatible Media Oil, petroleum, diesel, gasoline
Product Details
- Brand: VDO
- Part Number: A2C59510167
- Component Type: Fuel lever arm sender
- System Location: Fuel tank level measurement
Features
- Provides consistent fuel level readings for stable gauge indication and fuel management
- Wide tank-depth adjustability supports many tank designs (145 mm to 400 mm)
- Standard 5-hole SAE flange helps ensure a secure, service-friendly installation
- Integrated warning contact supports low-level alerts for added operational safety
- Designed for multi-fuel use including diesel and gasoline applications
-
