ID
989008
$ 65.03
1-2 weeks delivery time
-
+
The VDO A2C59510171 ALAS1 fuel lever arm sender is an adjustable fuel level sensing unit designed to deliver stable, accurate analog readings across a 3–180 Ohm range for wide compatibility with fuel gauge systems. Built for VDO level measurement applications, it mounts via a 5-hole SAE 54 mm flange and supports tank depths from 145 to 400 mm, helping keep drivers and technicians reliably informed of fuel level in real time.
- Description
- Ask a Question
-

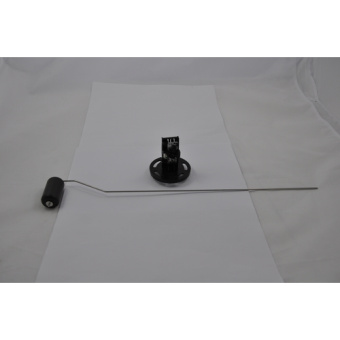

ALAS1 Fuel Level Lever Arm Sender with 3–180 Ohm Output
The VDO A2C59510171 is an ALAS1 fuel lever arm sender designed for dependable, real-time fuel level monitoring. Using a proven float-and-arm design, it converts fuel level movement inside the tank into an analog resistance signal (empty to full) for the vehicle or equipment fuel gauge. Its adjustable design supports a wide range of tank depths and integrates cleanly into level measurement installations using a standardized SAE mounting flange.
Compatibility
- Fuel gauge systems using an analog 3–180 Ohm empty-to-full signal
- Fuel tanks with 145–400 mm depth (adjustable sender setting)
- Installations using a 54 mm SAE 5-hole mounting flange
- Systems operating on 6–24 V DC
- Suitable for use with oil, petroleum, diesel, and gasoline
Product Details
- Brand: VDO
- Part Number: A2C59510171
- Component Type: Fuel lever arm sender (fuel level sensor), ALAS1
- Signal Type: Analog, insulated return
- Mounting: 54 mm SAE 5-hole flange
- Country of Origin: Malaysia
- EAN Code: 4103590692504
- HS Code: 90261089
- Weight: 0.22 kg
Features
- Provides consistent fuel level feedback for accurate gauge readings
- Adjustable lever-arm design to match a broad range of tank depths
- Standard SAE flange pattern supports straightforward replacements and upgrades
- Designed for VDO level measurement applications with reliable analog output
- No built-in warning contact; optional support via VDO A2C59510886 makepoint switch
Technical Specifications
Measurement Range 3–180 Ohm Resistance (Empty) 2.5 Ohm Resistance (Full) 180 Ohm Tank Depth Range 145–400 mm Mounting Flange 5-hole SAE, 54 mm Operating Voltage 6–24 V DC Operating Temperature -40 °C to +70 °C Fuel Compatibility Oil, petroleum, diesel, gasoline Warning Contact None Connector Type AMP blade 6.3 x 0.8 mm
Retail Package
- 1 lever arm fuel level sender (VDO A2C53170771)
-
