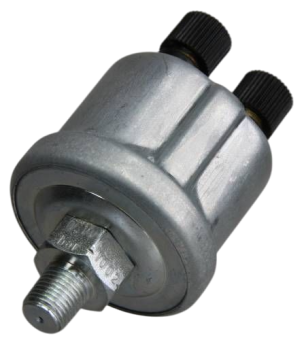

VDO 360-081-032-060C - Pressure Sender 0-5 Bar - M14

SKU: EX 360081032060C

€ 66,79

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The VDO 360-081-032-060C Pressure Sender is a high-precision sensor designed to measure pressures from 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) with exceptional accuracy. Featuring an M14 x 1.5 thread and a resistance range of 10 - 184 Ohm, it ensures reliable signal output for oil, fuel, and air systems. With a dual-pole insulated return for enhanced electrical performance, it operates effectively in temperatures from -25°C to +100°C and withstands short-term pressures of up to 30 Bar. Its robust design, including a thread length of 12 mm and 60 Nm torque specification, allows secure integration into automotive, marine, and industrial systems. Supporting 6 - 24 V DC operation, this sender offers dependable performance and is compatible with optional warning contact functionality for added versatility.

Description
Ask a Question

VDO 360-081-032-060C - Pressure Sender 0-5 Bar - M14

Key Features:
- Pressure range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) for accurate pressure monitoring
- Thread: M14 x 1.5 for secure and reliable installation
- Sender resistance range: 10 - 184 Ohm for precise signal output
- Dual-pole insulated return sensor signal for enhanced electrical performance
- Maximum pressure: 30 Bar for up to 2 seconds, ensuring durability in high-pressure conditions
- Operating temperature: -25°C to +100°C for reliable performance in extreme environments
- Compatible with oil, fuel, and air pressure systems
- Thread length (L2): 12 mm; total thread and nut length (L1): 20.5 mm
- Torque specification: 60 Nm for proper and secure mounting
- Connector: M4 hexagonal nut for secure and easy integration
- No built-in warning contact; optional VDO A2C59510886 Makepoint Switch available
Specifications:
- Pressure Measuring Range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa)
- Maximum Pressure: 30 Bar (2 seconds)
- Thread: M14 x 1.5
- Total Length Thread + Nut (L1): 20.5 mm
- Thread Length (L2): 12 mm
- Torque: 60 Nm
- Operating Temperature Range: -25°C to +100°C
- Resistor Range: 10 - 184 Ohm
- Signal Type: Dual-Pole insulated return
- Operating Voltage: 6 - 24 V DC
- Warning Contact: None (Optional: VDO A2C59510886 Makepoint Switch)
- Connector: M4 Hexagonal nut
- Compatible Mediums: Oil, fuel, air
Compatibility and Application:
- Designed for precise pressure monitoring in oil, fuel, and air systems
- Compatible with automotive, marine, and industrial applications
- Ideal for engines, transmissions, and hydraulic systems requiring accurate pressure readings
- Works seamlessly with systems operating on 6 - 24 V DC voltage
- Optimized for extreme pressure and temperature environments
Benefits:
- Accurate pressure monitoring with a range of 0 to 5 Bar
- Durable design capable of withstanding up to 30 Bar for short durations
- Dual-pole insulated return ensures reliable electrical performance
- Secure installation with M14 x 1.5 thread and 60 Nm torque
- Reliable signal transmission with a resistance range of 10 - 184 Ohm
- Compact and robust design ensures long-lasting performance
- Supports multiple pressure-sensitive mediums, offering versatile applications
