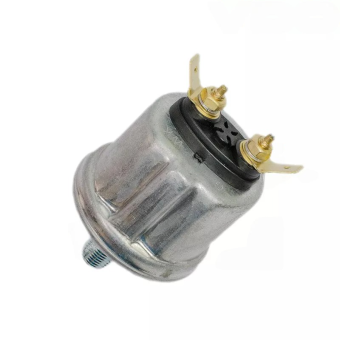

VDO 360-081-030-086C - Pressure Sender 0-5 Bar - 1/8-27 NPTF

SKU: EX 360081030086C

€ 81,10

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The VDO 360-081-030-086C Pressure Sender is an advanced and reliable sensor, specifically engineered for precise pressure measurement in both automotive and industrial systems. With a versatile pressure range of 0 to 5 Bar (0 to 72.5 PSI, 0 to 500 KPa), it is perfect for monitoring engine oil, fuel, and air pressure in critical applications. This sender features a durable 1/8 - 27 NPTF thread, ensuring a secure connection for stable performance. The device operates efficiently within a wide temperature range of -25°C to +100°C, with a maximum pressure tolerance of 30 Bar for up to two seconds, making it suitable for extreme conditions. Additionally, the VDO Pressure Sender includes a warning contact at 0.50 Bar ± 0.20 Bar, which activates when pressure falls below the set value, helping to prevent system damage and optimize operational safety.

Description
Ask a Question

VDO 360-081-030-086C - Pressure Sender 0-5 Bar - 1/8-27 NPTF

The VDO 360-081-030-086C Pressure Sender is a reliable sensor designed for accurate pressure measurement in automotive and industrial systems. With a pressure range of 0 to 5 Bar (0 to 72.5 PSI, 0 to 500 KPa), this sender ensures precise monitoring of engine oil, fuel, and air pressure. It features a 1/8 - 27 NPTF thread for secure installation and operates efficiently within a temperature range of -25°C to +100°C. The sender offers a warning contact at 0.50 Bar ± 0.20 Bar to help prevent potential system damage due to low pressure.

Key Features
- Pressure range: 0 to 5 Bar (0 to 72.5 PSI, 0 to 500 KPa) for versatile pressure sensing applications.
- Thread: 1/8 - 27 NPTF for a secure and stable connection in compatible systems.
- Sender resistance range: 10 - 184 Ohm, ensuring accurate and reliable readings.
- Warning contact: Activates at 0.50 Bar ± 0.20 Bar, offering protection against low pressure conditions.
- Operating voltage: 6 - 24 V DC, compatible with various automotive and industrial systems.
- Maximum pressure tolerance: 30 Bar for 2 seconds, providing durability under high-pressure situations.
- Connector: M4 AMP Male 4.8 x 0.8 mm for secure electrical connection and easy installation.
Specifications
- Pressure Measurement Range: 0 to 5 Bar (0 to 72.5 PSI, 0 to 500 KPa)
- Maximum Pressure: 30 Bar (for 2 seconds)
- Thread: 1/8 - 27 NPTF Male
- Length of thread + nut (L1): 19.5 mm
- Thread Length (L2): 11 mm
- Torque: 30 Nm for secure installation
- Operating Temperature: -25 °C to +100 °C
- Pressure Medium: Oil, Fuel, Air
- Operating Voltage: 6 - 24 V DC
- Resistor Range: 10 - 184 Ohm
- Signal: Single-Pole common ground
- Warning Contact: 0.50 Bar ± 0.20 Bar
- Warning Contact Switching Capacity: Maximum 5 Watt non-inductive
- Connector Type: M4 AMP Male 4.8 x 0.8 mm
- Packaging: VDO Sensor retail package
- Country of Origin: Germany
Compatibility and Application:
- Ideal for pressure measurement in automotive and industrial engine systems, such as engine oil, fuel, and air pressure.
- Compatible with VDO engine monitoring systems and other pressure sensing applications.
- Suitable for systems requiring precise and reliable pressure control for optimal performance and safety.
Benefits
- Provides accurate pressure readings to help optimize engine performance and prevent overheating or damage.
- Durable construction with high-pressure tolerance ensures reliable operation under extreme conditions.
- Warning contact functionality alerts users to potential low-pressure issues, helping protect critical systems.
- Easy installation with 1/8 - 27 NPTF thread and M4 AMP Male connectors for secure electrical connection.
- Wide operating temperature range makes it versatile for use in various automotive and industrial applications.
The VDO 360-081-030-086C Pressure Sender is an essential tool for precise pressure monitoring in engine systems, ensuring the safety and efficiency of automotive and industrial equipment.
