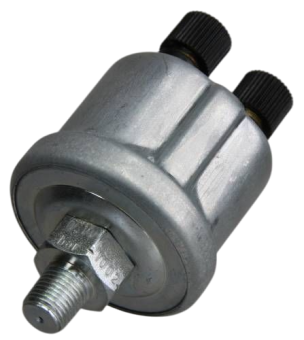

VDO 360-081-030-097C - Pressure Sender 0-5 Bar - M14

VDO 360-081-030-097C - Pressure Sender 0-5 Bar - M14

The VDO 360-081-030-097C Pressure Sender is a high-performance sensor designed for accurate pressure monitoring in various systems. It operates within a pressure range of 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) and offers precise measurements for applications involving oil, fuel, and air. The sensor features an M14 x 1.5 threaded connection, ensuring compatibility with a wide range of systems. With a sender resistance range of 10 to 184 Ohms and a single-pole common ground sensor signal, it provides reliable data and alerts. The warning contact, set at 0.50 Bar ± 0.15 Bar, activates with falling pressure, ensuring early detection of potential issues. This pressure sender is built for durability, with an operating temperature range from -25°C to +100°C and a maximum pressure tolerance of 30 Bar for 2 seconds. It is designed for easy installation with a torque requirement of 60 Nm and features a robust electrical connection using M4 AMP Male connectors.

Key Features

• Pressure Range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) for accurate pressure monitoring
• Thread: M14 x 1.5 for universal compatibility with most systems
• Sender Resistance Range: 10 - 184 Ohm for precise resistance measurements
• Single-Pole Common Ground Sensor Signal for reliable data transmission
• Warning Contact: 0.50 Bar ± 0.15 Bar, closes with falling pressure for early issue detection
• Maximum Pressure: 30 Bar during 2 seconds for enhanced durability
• Operating Temperature: -25°C to +100°C for use in harsh environments
• Pressure Medium Compatibility: Oil, Fuel, and Air for versatile applications
• Electrical Features: Operating voltage of 6 - 24 V DC and non-inductive warning contact switching capacity of up to 5 Watt
• Easy Installation: M4 AMP Male 6.3 x 0.8 mm connectors for simple wiring

Specifications

• Part Number: 360-081-030-097C
• Pressure Range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa)
• Maximum Pressure: 30 Bar for 2 seconds
• Thread: M14 x 1.5
• Length Thread + Nut (L1): 20.5 mm
• Thread Length (L2): 12 mm
• Torque: 60 Nm
• Operating Temperature: -25°C to +100°C
• Pressure Medium: Oil, Fuel, and Air
• Operating Voltage: 6 - 24 V DC
• Resistor Range: 10 - 184 Ohm
• Sensor Signal: Single-Pole Common Ground
• Warning Contact: 0.50 Bar ± 0.15 Bar, Closes with Falling Pressure
• Warning Contact Switching Capacity: Maximum 5 Watt Non-Inductive
• Pressure Sender Connector: M4 AMP Male 6.3 x 0.8 mm 50°
• Warning Contact Connector: M4 AMP Male 6.3 x 0.8 mm 50°

Compatibility and Application

The VDO 360-081-030-097C Pressure Sender is designed for use in various industrial, automotive, and fuel systems where accurate pressure monitoring is essential. It is compatible with systems using oil, fuel, and air as pressure media, providing reliable data for engine diagnostics, fuel systems, and hydraulic machinery. The robust design, high operating temperature range, and compatibility with M14 x 1.5 threaded connections make it an ideal choice for both OEM and aftermarket applications.

Benefits

• Accurate pressure measurements within a 0 to 5 Bar range for precise monitoring
• Durable construction with maximum pressure tolerance of 30 Bar for enhanced reliability
• Warning contact for early detection of pressure drops, preventing potential damage
• Versatile compatibility with oil, fuel, and air systems
• Wide operating temperature range of -25°C to +100°C for use in challenging environments
• Easy installation with M14 x 1.5 thread and simple electrical connections
