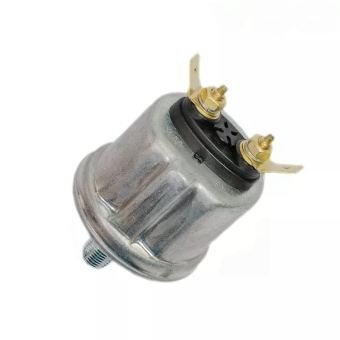

VDO 360-081-030-070C - Pressure Sender 0-10 Bar - M18

Article BB-360081030070C

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 360-081-030-070C pressure sender measures pressures from 0 to 10 Bar (0 to 145 PSI) and can handle a peak pressure of 30 Bar for up to 2 seconds. It features an M18 x 1.5 threaded connection, operates within -25 °C to +100 °C, and is compatible with oil, fuel, and air. Electrical specifications include a voltage range of 6 to 24 V DC, resistor range of 10 to 184 Ohm, and a warning contact at 0.50 Bar with a ±0.20 Bar tolerance, suitable for up to 5 Watts. Connectors are M4 AMP Male, 6.3 x 0.8 mm, with a 50° angle.

Description
Ask a Question

VDO 360-081-030-070C - Pressure Sender 0-10 Bar - M18

The VDO 360-081-030-070C is a high-performance pressure sender designed for accurate measurement and reliable operation in various applications. It is engineered to handle pressures ranging from 0 to 10 Bar, equivalent to 0 to 145 PSI or 0 to 1000 KPa. The device can withstand a maximum pressure of 30 Bar for short durations of up to 2 seconds.

The sender features a robust M18 x 1.5 threaded connection with a thread length of 12 mm and an overall length including the nut of 20.5 mm. It is built to operate efficiently within a temperature range of -25 °C to +100 °C and is compatible with pressure mediums such as oil, fuel, and air.

In terms of electrical specifications, the VDO 360-081-030-070C operates within a voltage range of 6 to 24 V DC and has a resistor range of 10 to 184 Ohm. It uses a single-pole common ground for its pressure sensor signal. The device includes a warning contact set at 0.50 Bar with an allowable deviation of ±0.20 Bar, and it can handle a switching capacity of up to 5 Watts in a non-inductive load. The warning contact closes when pressure falls below the set threshold.

For connections, the pressure sender uses an M4 AMP Male connector with dimensions of 6.3 x 0.8 mm and a 50° angle, which is also used for the warning contact. This ensures secure and reliable connectivity in your system.
