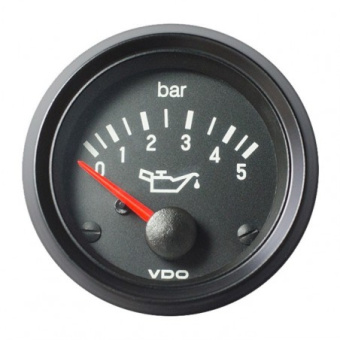

VDO 350-040-003C - Cockpit International Engine Oil Pressure 5 Bar 52mm 24V

VDO 350-040-003C - Cockpit International Engine Oil Pressure 5 Bar 52mm 24V

Key Features:

• Engine oil pressure range of 0 to 5 Bar, perfect for monitoring oil pressure in various engines.
• 52mm (2 1/16") diameter with a black bezel and red backlit pointer for clear visibility in any lighting conditions.
• Operates on 24V DC, suitable for automotive, marine, and industrial applications.
• Floodlight illumination in white, green, and red (24V - 2 Watt) for enhanced readability in low light.
• AMP male blade connectors (6.3 x 0.8mm) for secure and easy electrical connections.
• IP64-rated front protection ensures dust and water resistance for reliable operation in harsh environments.
• Temperature range: -30°C to +85°C, designed to perform in a wide variety of conditions.
• CE certified for safety and compliance with industry standards.
• Easy installation with a triangular black bezel and threaded ring (special tool required for bezel change).
• Reliable mechanical shock resistance up to 1G for 8 hours at frequencies from 25Hz to 2000Hz.

Specifications:

• Part Number: 350-040-003C
• Pressure Measurement Range: 0 - 5 Bar
• Operating Voltage: 21.5 - 30V DC
• Current Consumption (without illumination): 82 mA
• Dial Illumination: Floodlight (White, Green, Red) 24V - 2 Watt
• Connector Type: AMP Male blade connector (6.3 x 0.8mm, 3x)
• Dial Colour: Black
• Pointer: Red backlight
• Bezel: Interchangeable black triangle bezel (special tool required)
• Lens: Plastic, single, non-reflective, anti-glare
• IP Rating: Front - IP64 (Ozone proof, UV proof), Rear - IP42
• Housing: Plastic, flame retardant
• Packaging: VDO Instruments OEM bulk
• Country of Origin: Malaysia
• Operating Temperature: -30°C to +85°C
• Mechanical Shock Resistance: Max 1G - 25Hz - 2000Hz (8 hours)
• EMC Test: According to EN 13309 and ISO 13766
• CE Standard: Yes

Compatibility and Application:

• Perfect for VDO engine monitoring systems, providing precise oil pressure readings for engine health and maintenance.
• Compatible with 24V DC electrical systems, making it suitable for various automotive, marine, and industrial engines.
• Ideal for preventing engine damage by monitoring and maintaining proper oil pressure levels.

Benefits:

• Accurately monitors engine oil pressure to optimize engine performance and prevent damage from low oil pressure.
• Enhanced visibility with multi-colour backlighting, ensuring clear readings in low-light conditions.
• Built to last with IP64 protection, resistant to dust, water, ozone, and UV exposure for use in challenging environments.
• Simple installation with secure connectors and easy-to-mount bezel design.
• CE certified for compliance with safety standards, offering reliable and consistent performance in demanding applications.
