VDO 340-804-005-001C - Inductive Tacho - Speed Sender - M18

VDO 340-804-005-001C - Inductive Tacho Speed Sender - M18

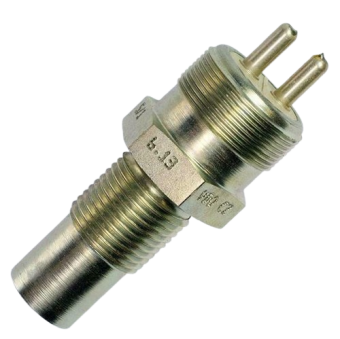

The VDO 340-804-005-001C Inductive Tacho Speed Sender is designed to accurately measure rotational speed in engine monitoring systems. This high-performance sensor features a 250Hz frequency, producing 15,000 pulses per minute, making it ideal for various automotive and industrial applications. It is equipped with an M18 x 1.5 male thread for easy installation and offers a robust operating temperature range from -30°C to +140°C, ensuring reliable performance in harsh conditions.

Key Features

• Sender type: Inductive with a frequency of 250 Hz (15,000 pulses per minute) for precise speed measurements.
• Thread: M18 x 1.5 male, offering easy integration into a variety of systems.
• Operating voltage: Independent, providing flexibility in installation across different setups.
• Sensor signal: 2-pole insulated return, ensuring reliable and stable data transmission.
• Operating temperature: -30°C to +140°C, making it suitable for use in extreme environments.
• Connector: 2-pole Kostal M24 x 1, with a 4 mm pin diameter for secure connections.
• Internal resistance: 1.050 ± 100 Ohm, contributing to precise and consistent sensor performance.

Specifications

• Thread: M18 x 1.5 male
• Frequency: 250 Hz (15,000 pulses per minute)
• Operating temperature: -30°C to +140°C
• Sender length overall (L4): 71.5 mm
• Sender length (L1): 18 mm
• Sender length (L2): 35 mm
• Sender length (L3): 36.15 - 35.80 mm
• Operating voltage: Independent
• Signal output: Insulated return
• Connector: 2-pole Kostal M24 x 1, Pin diameter 4 mm
• Internal resistance: 1.050 ± 100 Ohm
• Packaging: VDO Sensor retail package
• Country of origin: Czech Republic

Compatibility and Application

• The VDO 340-804-005-001C Inductive Tacho Speed Sender is ideal for engine monitoring systems requiring precise rotational speed measurements.
• It is compatible with a variety of automotive and industrial applications, providing accurate feedback for engine performance and efficiency monitoring.
• This sensor is designed to integrate seamlessly with VDO engine monitoring systems, delivering reliable data for performance analysis and optimization.
• Its durable construction and wide operating temperature range make it suitable for use in demanding environments, from automotive to industrial machinery.

Benefits

• Accurate speed measurement with 250 Hz frequency for reliable data and system optimization.
• Easy installation with M18 x 1.5 male thread, compatible with a wide range of systems.
• Wide operating temperature range ensures reliable performance in extreme conditions.
• High-quality 2-pole insulated return signal for stable and precise data transmission.
• Durable construction and independent operating voltage make it ideal for use in various industrial and automotive applications.

Choose the VDO 340-804-005-001C Inductive Tacho Speed Sender for reliable speed measurements and enhanced engine performance monitoring.
