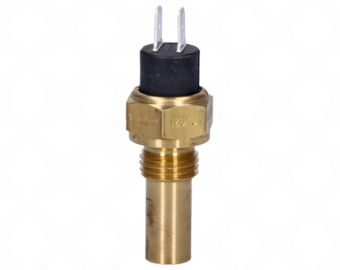

VDO 323-805-001-001N - Coolant Temperature Sender 120°C - M14

SKU: VDO 323805001001N

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 323-805-001-001N Coolant Temperature Sender is designed for precise measurement of coolant, engine oil, water, and fuel temperatures, making it a vital component in any engine monitoring system. With a wide temperature measuring range of +40°C to +120°C, it offers reliable performance across various temperature conditions. The sender operates within a voltage range of 6 to 24V DC and features a durable M14 x 1.5 thread for secure installation. The sensor’s resistance range from 287.4 to 22.7 Ohm ensures accurate readings, and the dual-pole insulated return signal provides stable and noise-free output. Built to withstand harsh environments, the sender can operate in temperatures ranging from -40°C to +150°C, ensuring durability even in extreme conditions. Ideal for use in automotive, marine, and industrial applications, this temperature sender helps optimize engine performance and efficiency.

Description
Ask a Question

VDO 323-805-001-001N - Coolant Temperature Sender 120°C - M14

The VDO 323-805-001-001N Coolant Temperature Sender is designed for accurate temperature measurement of coolant, engine oil, water, fuel, and more. With a temperature measuring range of +40°C to +120°C, this sender is ideal for engine monitoring in various vehicles and industrial applications. Featuring a durable M14 x 1.5 thread and a sensor resistance range of 287.4 - 22.7 Ohm, it provides reliable analog signals for precise monitoring. The sender operates with a voltage range of 6-24V DC and offers a dual-pole insulated return for accurate readings. Its compact size and 29 mm length make it easy to install in tight spaces. This temperature sender is built for durability, with an operating temperature range of -40°C to +150°C, ensuring reliable performance even in extreme conditions.

Key Features:
- Temperature range: +40°C to +120°C for accurate coolant temperature measurement
- Dual-pole insulated return for precise analog signal output
- Compatible with various media including coolant, water, engine oil, fuel, and more
- Durable M14 x 1.5 thread for easy installation in engine systems
- Operating voltage range: 6-24V DC for versatile applications
- Compact size with a sensor length of 29 mm and sensor diameter of 11 mm
- Wide operating temperature range: -40°C to +150°C, ensuring reliability in extreme conditions
Specifications:
- Thread: M14 x 1.5 Male
- Sensor Signal: Dual-Pole Insulated Return
- Resistor Range: 287.4 - 22.7 Ohm
- Temperature Measuring Range: +40°C to +120°C
- Operating Voltage: 6-24 V DC
- Connector Type: AMP Male 6.3 x 0.8 mm
- Warning Contact: None (Optional Warning Contact with VDO A2C59510886 Makepoint Switch)
- Torque: 20 Nm
- Temperature Medium: Coolant, Water, Air, Engine Oil, Transmission Oil, Fuel
- Sensor Diameter: 11 mm
- Sender Element Length: 29 mm
- Operating Temperature Range: -40°C to +150°C
- Country of Origin: Czech Republic
- Packaging: VDO Sensor retail package
- Signal Output: 287.4 - 22.7 Ohm
- CE Standard: Yes
- Category: Temperature Sensors
Compatibility and Application:

The VDO 323-805-001-001N Coolant Temperature Sender is suitable for a wide range of engine and vehicle systems, including those utilizing coolant, engine oil, and fuel. It is specifically designed for use with VDO Engine Monitoring systems, offering reliable and accurate data for temperature measurement.

Benefits:
- Reliable temperature measurement for a wide range of media including coolant, oil, and fuel
- Dual-pole insulated return for stable analog signal output
- Durable and compact design for easy installation and long-term performance
- Wide temperature operating range (-40°C to +150°C) for dependable performance in harsh environments
- CE certified for compliance with international standards
