The VDO 323-803-001-023D Coolant Temperature Sender is a high-precision sensor designed for accurate and reliable monitoring of coolant, water, air, engine oil, transmission oil, and fuel temperatures. It operates within a range of +40°C to +120°C, featuring a robust M14 x 1.5 thread for secure installation and a sender resistance range of 287.4 - 22.7 Ohm for dependable performance. With a built-in warning contact at 80°C ± 3°C and a switching capacity of up to 3 Watts, it ensures enhanced safety by signaling critical temperature thresholds. The sensor operates within a wide voltage range of 6-24 V DC and can withstand extreme temperatures from -40°C to +150°C, making it suitable for demanding environments. Compact, durable, and easy to integrate with VDO systems, it delivers precise analog signals and improves overall engine efficiency and safety.
- Description
- Ask a Question
-

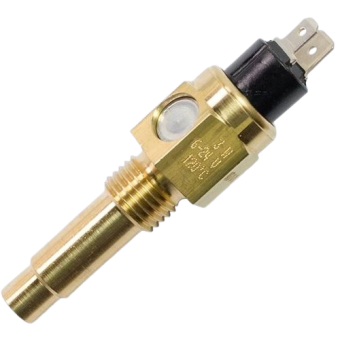

VDO 323-803-001-023D - Coolant Temperature Sender 120°C - M14
Key Features:
- Temperature measurement range: +40°C to +120°C
- Thread specification: M14 x 1.5 for secure installation
- Sender resistance range: 287.4 - 22.7 Ohm for accurate readings
- Warning contact at 80°C ± 3°C for enhanced safety
- 1-pole common ground signal for reliable data transmission
- Compatible with multiple mediums: coolant, water, air, engine oil, transmission oil, and fuel
- Durable design with maximum operating temperature of -40°C to +150°C
Specifications:
- Temperature Range: +40°C to +120°C
- Operating Temperature: -40°C to +150°C
- Thread: M14 x 1.5 Male
- Sender Resistance: 287.4 - 22.7 Ohm
- Resistance at 100°C: 38.47 Ohm ± 2.98 Ohm
- Warning Contact: 80°C ± 3°C
- Warning Contact Switching Capacity: 1.2 - 3 Watt (non-inductive)
- Torque: 20 Nm
- Connector Type: AMP Male 6.3 x 0.8 mm
- Warning Contact Connector: AMP Male 4.8 x 0.8 mm
- Sender Element Length + Thread: 40 mm
- Sensor Diameter: 10.8 mm
- Signal Type: Single-Pole Common Ground
- Voltage Range: 6 - 24 V DC
- Packaging: VDO Sensor Retail Package
- Country of Origin: Czech Republic
Compatibility and Application:
- Ideal for engine monitoring systems
- Designed for coolant temperature measurement
- Compatible with VDO analog systems
- Works with multiple temperature mediums for versatile applications
Benefits:
- Provides precise coolant temperature monitoring
- Enhances engine safety with warning contact at critical temperature
- Durable construction ensures reliable performance under extreme conditions
- Easy installation with standard M14 x 1.5 thread and AMP connectors
- Improves efficiency and functionality in engine management systems
- Backed by trusted VDO quality and design
-
