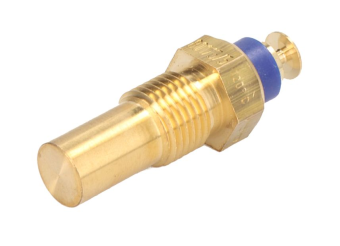

VDO 323-801-005-005D - Coolant Temperature Sender 120°C - M10

VDO 323-801-005-005D - Coolant Temperature Sender 120°C - M10

The VDO 323-801-005-005D Coolant Temperature Sender is a precision-engineered sensor designed for accurate temperature monitoring in automotive and industrial applications. With its robust construction and advanced features, it ensures reliable performance under demanding conditions, making it ideal for engine and fluid monitoring systems.

Key Features

• Accurate temperature range: +40 °C to +120 °C for precise monitoring.
• Thread specification: M10 x 1 for universal compatibility.
• Sensor signal: Single-pole common ground for reliable data transmission.
• Durable design with a temperature operating range of -40 °C to +150 °C.
• No warning contact with optional VDO A2C59510886 makepoint switch compatibility.
• AMP Male T-model 6.3 x 0.8 mm connector for secure connections.
• Resistor range: 287.4 - 22.7 Ohm ensuring high sensitivity and accuracy.

Specifications

• Temperature Range: +40 °C to +120 °C
• Minimum- Maximum Operating Temperature: -40 °C to +150 °C
• Thread: M10 x 1
• Sender Resistance Range: 287.4 - 22.7 Ohm
• Sensor Diameter: 8.5 mm
• Sender Element Length + Thread (L): 22 mm
• Torque: 10 Nm
• Temperature Medium: Coolant, Water, Air, Engine Oil, Transmission Oil, Fuel
• Operating Voltage: 6 - 24 V DC
• Signal Output: Analog (287.4 - 22.7 Ohm)
• Connector Type: AMP Male T-model 6.3 x 0.8 mm
• Packaging: VDO Sensor retail package
• Country of Origin: Czech Republic

Compatibility and Application:

• Designed for engine monitoring applications
• Provides analog signal with common ground
• Ideal for applications requiring precise temperature control and monitoring
• Suitable for coolant, oil, air, and fuel temperature measurement
• Works with VDO systems and other compatible setups

Benefits

• Ensures accurate and reliable temperature measurements for engine performance optimization.
• Durable and robust design for long-lasting use in extreme conditions.
• Wide compatibility with various vehicle and industrial systems.
• Simple installation with universal M10 x 1 thread and AMP connector.
• Reduces the risk of engine overheating by providing real-time temperature data.
• Optional makepoint switch adds versatility for advanced applications.

The VDO 323-801-005-005D is a high-quality temperature sender designed to deliver dependable performance and precision in engine monitoring systems. Its versatile design and advanced features make it an essential component for modern automotive and industrial applications.
