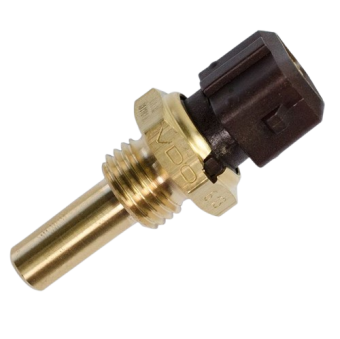

VDO 323-803-014-007C - Oil Temperature Sender 150°C - M14

SKU: VDO 323803014007C

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 323-803-014-007C Oil Temperature Sender is designed for precise temperature monitoring of engine oil, with a temperature range from +50°C to +150°C. Featuring an M14 x 1.5 thread, it is compatible with a variety of fluids, including coolant, engine oil, transmission oil, and fuel. The sender has a resistance range of 322.8 - 18.6 Ohm, providing accurate readings to the connected gauge. A warning contact activates at 108°C ± 3°C, ensuring the system alerts when the temperature exceeds safe levels. With an operating voltage range of 6 - 24 V DC, this sender is ideal for automotive, marine, and industrial applications. Manufactured in the Czech Republic, it is built to last with a wide operating temperature range of -30°C to +180°C. This high-quality oil temperature sender offers reliable performance and easy installation with Bosch push-on connectors for secure wiring.

Description
Ask a Question

VDO 323-803-014-007C - Oil Temperature Sender 150°C - M14

Key Features:
- Accurate oil temperature measurement with a range of +50°C to +150°C for engine monitoring systems.
- Compatible with various fluids, including coolant, water, air, engine oil, transmission oil, and fuel.
- M14 x 1.5 thread for secure installation in standard engine and vehicle systems.
- Sender resistance range: 322.8 - 18.6 Ohm, providing precise temperature data transmission.
- Warning contact set at 108°C ± 3°C, designed to activate when temperature rises beyond the threshold.
- Operating voltage range: 6 - 24 V DC, suitable for a wide variety of electrical systems.
- Warning contact switching capacity of 1.2 - 3 Watt (non-inductive), ensuring reliable activation for safety or cooling systems.
- Bosch push-on connector (2.8x0.8mm) for easy and secure connections for both the sender and warning contact.
- Minimum operating temperature of -30°C and maximum of +180°C for reliability in extreme environments.
- Manufactured in the Czech Republic for high quality and durability.
Specifications:
- Part Number: 323-803-014-007C
- Temperature Range: +50°C to +150°C
- Thread: M14 x 1.5 (Male)
- Sender Element Length + Thread (L): 40 mm
- Sensor Diameter: 10.8 mm
- Torque: 20 Nm for secure installation
- Operating Voltage: 6 - 24 V DC
- Resistor Range: 322.8 - 18.6 Ohm
- Warning Contact: 108°C ± 3°C, with 1.2 - 3 Watt switching capacity (non-inductive)
- Warning Contact Connector: Bosch push-on connector (2.8x0.8mm)
- Temperature Sensor Signal: Common ground (Single-Pole)
- Packaging: VDO Sensor retail package
- Country of Origin: Czech Republic
Compatibility and Application:
- Ideal for VDO engine monitoring systems to provide accurate oil temperature readings.
- Compatible with a variety of fluids including coolant, engine oil, transmission oil, and fuel.
- Perfect for automotive, marine, and industrial applications that require precise oil temperature monitoring.
Benefits:
- Accurate oil temperature readings ensure optimal engine performance and protection against overheating.
- Reliable warning contact activation at 108°C helps prevent potential damage by alerting users when the temperature exceeds safe limits.
- Durable construction with a wide operating temperature range of -30°C to +180°C, suitable for extreme conditions.
- Easy installation with M14 x 1.5 thread and Bosch push-on connectors for quick and secure electrical connections.
- Manufactured in the Czech Republic, ensuring high quality and long-lasting reliability.
