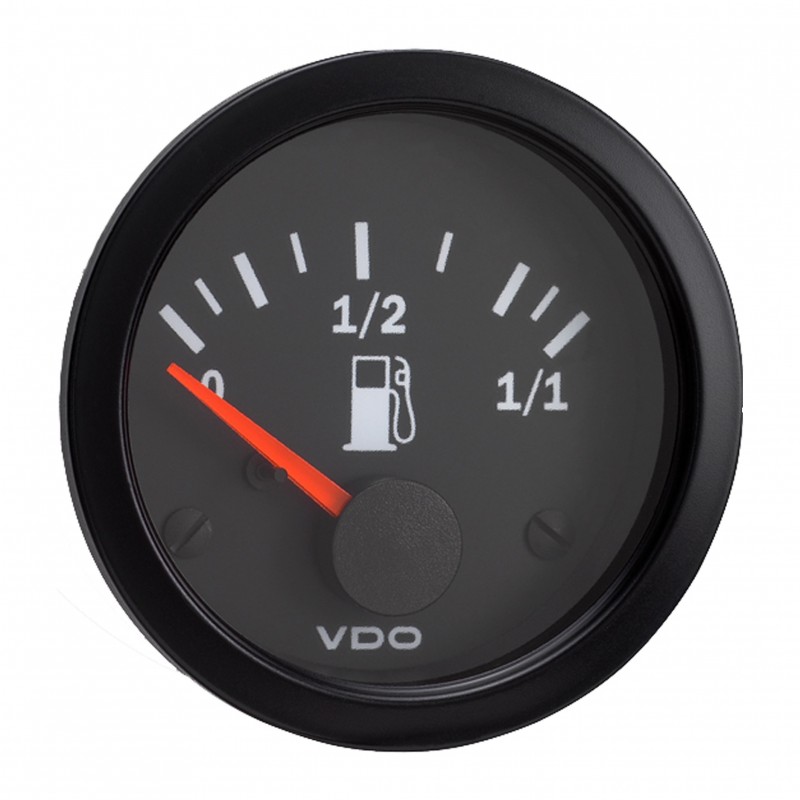

The VDO 301-010-001K Cockpit Vision fuel level gauge is a 52 mm tubular instrument for 12V vehicle systems, designed to display tank level using an adjustable 90–0.5 Ohm sender signal. Built for clear everyday monitoring, it features backlit illumination options, reverse polarity protection, and a secure clamp-ring mounting style to deliver dependable, easy-to-read fuel level information on the dash.
- Description
- Ask a Question
-
VDO Cockpit Vision 52 mm Fuel Level Instrument for 12V Systems
Built for clean integration into modern dashboards, the VDO 301-010-001K Cockpit Vision fuel level gauge is a tubular 52 mm instrument that monitors tank level through an adjustable 9060 to 0.5 Ohm analog signal range. Designed for 12V vehicle electrical systems, it supports accurate, stable readings for everyday driving while adding a crisp, OEM-style look to custom builds and professional installations.
Compatibility
- 12 Volt DC vehicle electrical systems
- VDO dip pipe sender, 90 - 0.5 Ohm, EU adjustable
- EU tubular pipe sender, 90-0 Ohm
Technical Specifications
Part Number 301-010-001K Series Cockpit Vision Category Fuel level gauges Measurement Range 0 - 1/2 - 1/1 Signal (Analog) Empty - Full: 60-90 - 0.5 Ohm Sensor Signal VDO dip pipe sender 90 - 0.5 Ohm EU adjustable Communication Analog Operating Voltage 11 - 16 Volt DC Current Consumption (Without Illumination) < 96 mA Reverse Polarity Protection Yes Deflection Angle 90 Panel Hole Diameter 52 mm (2 1/16 Inch) Outside Diameter 59.25 mm (2 1/3 Inch) Installation Depth 61 mm Installation Clamp ring Connection AMP male blade connector 6.3 x 0.8 mm (3x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Dial Color Black Pointer Red backlight Lens Single anti-glare Bezel Triangular black (threaded ring) Bezel Interchangeable Yes (special tool required) Bezel Model Black flat Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Operating Temperature -30 C to +85 C CE Standard Yes Mechanical Shock (8 Hours) Max: 1G - 25Hz - 2000Hz EMC Test According to EN 13309 and ISO 13766 Housing Plastic flame retardant Color Black Country of Origin Malaysia HS Code 85122000 EAN Code 4103590350091 Weight 0.16 kg Warning Indication None Programming None
Product Details
- Brand: VDO
- Component Type: Fuel level gauge
- Model/Design: Cockpit Vision, black dial with single anti-glare lens
- Mounting Style: Clamp ring; locking height with Spinlock nut 0.5 mm - 23 mm
- Illumination: Backlight 12V - 2 Watt (white, green, red) and optional 24V - 2 Watt
- Retail Package Contents: Fuel level gauge, Spinlock nut (connecting material ordered separately)
Features
- Clear analog fuel level indication with a simple 0 - 1/2 - 1/1 scale for fast at-a-glance checks
- Designed to work with VDO sender signals for consistent readings across the tank range
- Reverse polarity protection helps protect the instrument during installation or wiring faults
- Compact 52 mm format suits tight dash layouts while maintaining strong readability
- IP-rated protection (front IP64, rear IP42) supports reliable operation in demanding environments
-
