The VDO 2910002234500 tubular contactless liquid level sensor uses reed switch technology to deliver stable analog level readings for tank monitoring in vehicles and industrial machinery. Built as a 54 mm 5-hole SAE flange sender with a 550 mm tube, it outputs an empty-to-full resistance signal of 90 to 1 Ohm and is suitable for liquids such as diesel, gasoline, oil, petroleum, and water, supporting dependable fuel and fluid level measurement in demanding environments.
- Description
- Ask a Question
-

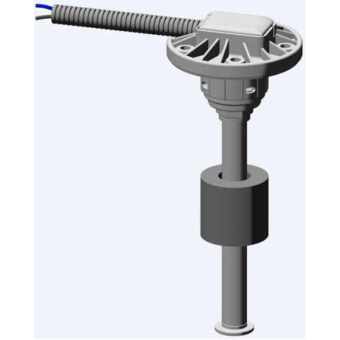

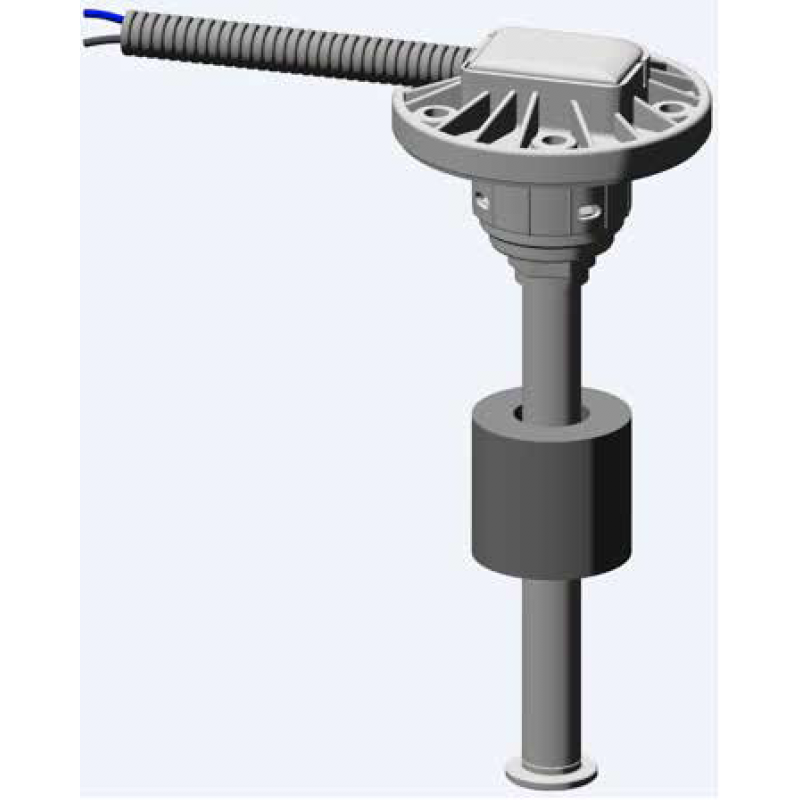

VDO Tubular Reed Switch Level Sensor 54 mm Flange 550 mm
The VDO 2910002234500 is a tubular, contactless liquid level sensor designed for accurate tank level measurement using reed switch technology. With a 5-hole SAE 54 mm mounting flange and a 550 mm tube length, it provides a steady analog resistance output for dashboard gauges or level monitoring systems in vehicle and industrial fluid applications.
Compatibility
- Water
- Diesel according to DIN EN 590 (2014-04)
- Diesel according to DIN EN 14214-FAME (2014-06)
- Gasoline according to DIN EN 228 (2014-10)
- Oil
- Petroleum
- Fuel level monitoring in vehicles
- Fluid level monitoring in industrial machinery
Product Details
- Brand: VDO
- Part Number: 2910002234500
- Component Type: Tubular reed switch liquid level sensor (contactless)
- Mounting: 5-hole SAE flange, 54 mm
- Signal Type: Analog resistance output (empty to full)
- Sensor Signal: Insulated return (isolated ground)
Features
- Reed switch sensing for consistent, repeatable level readings
- 90 to 1 Ohm empty-to-full range suited to common gauge inputs
- SS316 tubular design intended for demanding tank environments
- Designed for multi-liquid use, including fuel and water applications
Technical Specifications
Tube Length 550 mm ± 2.0 mm Tube Diameter 40 mm Minimum Tank Depth 550 mm ± 2.0 mm + 4.0 mm Tank Depth Range 550 mm to 600 mm Mounting Flange 5-hole SAE 54 mm Flange Material PA66 GF30 Sensor Construction Plastic / stainless steel Operating Temperature -40 °C to +85 °C Operating Voltage 6 to 48 V DC Resistance (Empty) 91.0 Ohm ± 1.0 Ohm Resistance (Full) 1.0 Ohm ± 1.0 Ohm Warning Contact None Adjustable Sensor No Connector Type None Communication Analog HS Code 90269000 EAN 4103590696533 Weight 0.52 kg Country of Origin Turkey Package Contents 1 tubular sensor, length 550 mm Article Status Orderable Category Fuel level sensors -
