ID
989011
$ 863.60
1-2 weeks delivery time
-
+

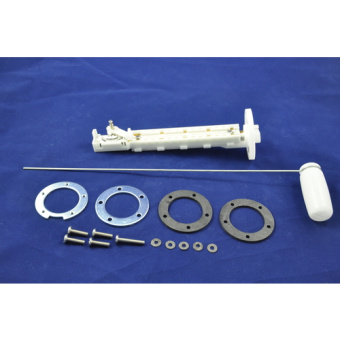

The VDO 226-801-015-001C adjustable lever arm fuel level sender (VDO 145 sender type) is built for reliable fuel level measurement in tanks from 150 mm to 600 mm deep, using a 3–180 Ohm empty-to-full signal for connection to a fuel gauge. With a 5-hole SAE 54 mm mounting flange, insulated return signal, and an AMP blade 6.3 x 0.8 mm connector, it supports accurate real-time fuel monitoring across oil, petroleum, diesel, and gasoline systems on 6–24 V DC installations, supplied as an OEM bulk package of 10 senders.
- Description
- Ask a Question
-
Adjustable Lever Arm Fuel Level Sender for 150–600 mm Tank Depth
The VDO 226-801-015-001C is an adjustable fuel lever arm sender designed for dependable level measurement in tanks with a depth from 150 mm to 600 mm. Using a 3–180 Ohm empty-to-full analog output, it provides the real-time fuel level signal required by a compatible fuel gauge for accurate, confidence-inspiring monitoring.
Compatibility
- Tanks with adjustable depth range of 150 mm to 600 mm
- Fuel gauges using 3–180 Ohm empty-to-full input (for 1 fuel gauge)
- Fuel types: oil
- Fuel types: petroleum
- Fuel types: diesel
- Fuel types: gasoline
Product Details
- Brand: VDO
- Part Number: 226-801-015-001C
- Sensor Type: Fuel lever arm sender (standard)
- Application: VDO level measurement
- Packaging: OEM bulk package (10 lever arm senders)
- Country of Origin: Switzerland
- Article Status: Orderable
Technical Specifications
Tank Depth 150 mm – 600 mm (adjustable) Mounting Flange 5-Hole SAE, 54 mm Measurement Range 3 – 180 Ohm Resistance (Empty) 3 Ohm ± 1.5 Ohm Resistance (Full) 180 Ohm Operating Voltage 6 – 24 V DC Operating Temperature -25 °C to +65 °C Communication Analog Sensor Signal Insulated return Connector Type AMP Blade 6.3 x 0.8 mm Warning Contact None Optional Warning Contact VDO A2C59510886 makepoint switch HS Code 90269000 EAN Code 4103590688873
Features
- Adjustable lever arm design to match a wide range of tank depths (150–600 mm)
- 3–180 Ohm analog output for stable, readable fuel gauge indication from empty to full
- 5-hole SAE 54 mm flange for standardized mounting on suitable tanks
- Supports multi-fuel use across oil, petroleum, diesel, and gasoline systems
- Designed for 6–24 V DC systems with insulated return signal and AMP blade connector
-
