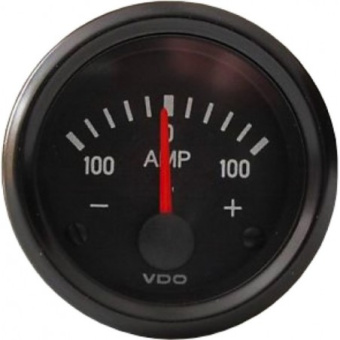

VDO 190-037-003C - Cockpit International Ammeter Gauge 52 mm 100A
The VDO 190-037-003C Cockpit International Ammeter Gauge is designed to measure electrical current with precision. With its compact dimensions and versatile functionality, it is ideal for automotive and industrial applications.
Installation (Hole) diameter and Outside diameter: 52 mm (2 1/16 Inch) and 59.25 mm (2 1/3 Inch)
Installation depth: 67.5 mm
Locking height with bracket: 0.5 mm - 8 mm
Flushmount: NoneFunctionality:
Ampere measurement range: -100A to +100A DC
Shunt: Not applicable
Signal input ammeter gauge: -100A to +100A DC
Accuracy: Not specified by VDO
Connection: M8 hexnut
Illumination connection: AMP Male blade connector 6.3 x 0.8 mm (2x)Power supply:
Operating voltage (Illumination only): 12 Volt standard - 24 Volt optional
Current consumption (Illumination only): 12 Volt 2 Watt - 24 Volt 2 Watt -
