ID
1129392
$ 123.58
1-2 weeks delivery time
-
+

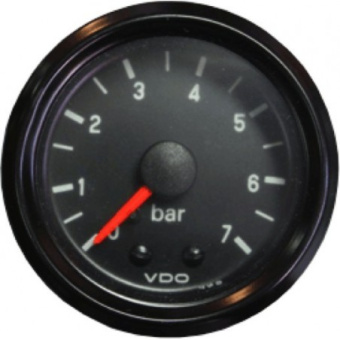

The VDO 150-035-004G Cockpit International oil pressure gauge is a 52 mm mechanical instrument for engine monitoring that displays oil pressure from 0 to 7 bar for clear, at-a-glance status in the cockpit or dashboard. Designed for a precise panel fit with 67.5 mm installation depth, it uses an M12 x 1.5 mechanical pressure connection and supports optional illumination on 12 V or 24 V with 2 W consumption, making it a solid choice for reliable analog oil-pressure indication across many installations.
- Description
- Ask a Question
-
Cockpit International Mechanical Oil Pressure Gauge 0 To 7 Bar
Built for dependable engine oil pressure monitoring, the VDO 150-035-004G Cockpit International gauge provides a clear analog reading from 0 to 7 bar. This compact 52 mm panel instrument uses a mechanical pressure signal with an M12 x 1.5 connection and can be fitted with optional illumination for 12 V or 24 V electrical systems.
Compatibility
- VDO Engine Monitoring
Technical Specifications
Part Number 150-035-004G Series VDO Cockpit International Measurement Range 0 to 7 Bar Signal Type Mechanical Pressure Connection M12 x 1.5 Panel Hole Diameter 52 mm (2 1/16 Inch) Outside Diameter 59.25 mm (2 1/3 Inch) Installation Depth 67.5 mm Locking Height With Bracket 0.5 mm to 8 mm Operating Voltage (Illumination Only) 12 Volt standard, 24 Volt optional Current Consumption (Illumination Only) 2 Watt at 12 Volt, 2 Watt at 24 Volt Illumination Connection Optional AMP male blade connector 6.3 x 0.8 mm (2x) Dial Color Black Pointer Red backlight Deflection Angle 90° Lens Single, anti-glare Front Protection Class IP64 (DIN 40050), ozone-proof, UV-proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C EMC Test According to EN 13309 and ISO 13766 CE Standard Yes Country of Origin India EAN Code 4103590687494 HS Code 85122000 Weight 0.22 kg
Product Details
- Brand: VDO
- Component Type: Oil pressure gauge (mechanical)
- Model Line: Cockpit International
- Bezel: Triangular black (threaded ring); interchangeable with special tool
- Housing: Plastic, flame-retardant
- Additional Reference In Retail Package: A2C6252866066
Features
- Clear 0–7 bar scale supports confident oil-pressure monitoring during operation
- Mechanical signal design with M12 x 1.5 connection suits robust, straightforward installations
- Compact 52 mm form factor for tidy dashboard or cockpit layouts
- Optional illumination for visibility in low-light conditions on 12 V or 24 V systems
- IP-rated protection helps the instrument stand up to demanding environments
In The Box
- Pressure gauge
- Steel bracket, zinc-plated and chromatized
- Connecting material ordered separately
-
