Simrad NSX 3012UW No Transducer (000-16215-001) is a 12-inch navigation display with IPS touchscreen, C-MAP X chart support, radar and autopilot compatibility, and full marine system integration without a transducer.
- Description
- Ask a Question
-

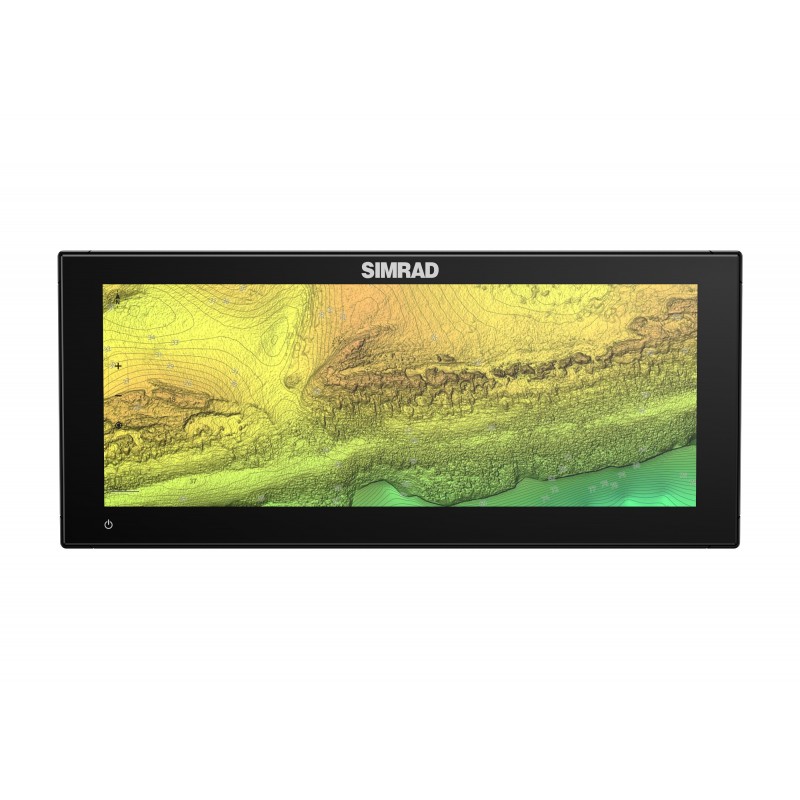

Simrad 000-16215-001 - Display NSX 3012UW No Transducer
The NSX series provides a modern marine navigation system with a high-resolution 12” SolarMAX IPS multi-touch display. It delivers clear visuals, fast response and an intuitive interface designed for simplified onboard control. The screen offers strong visibility from all angles, including bright sunlight and polarized conditions.
It supports advanced C-MAP DISCOVER X and REVEAL X cartography with detailed bathymetry, vector charts and precise contour mapping. Enhanced autorouting, tide and current projections improve navigation planning. The system is built with a redesigned operating system for faster operation, improved usability and full integration with marine electronics.
Features
- 12” SolarMAX IPS touchscreen (1920x720)
- C-MAP DISCOVER X and REVEAL X chart compatibility
- Integrated WiFi and Ethernet connectivity
- NMEA 2000® support
- Autopilot integration (NAC-1, NAC-2, NAC-3, NAC-D)
- Compatible with Halo Dome Radar and AIS systems
- Internal 10Hz GPS with WAAS, MSAS, EGNOS
- Waterproof rating IPx6 / IPx7
Technical Data
Model NSX 3012UW Display Size 12” (1920x720) Sonar Compatibility 1 x 9-pin 1kW Xsonic, CHIRP 50/200 kHz, HDI, Active Imaging Radar Support Halo Dome Radar Networking 1 Ethernet port (5-pin), NMEA 2000® Micro-C (1 LEN) GPS Internal 10Hz GPS with WAAS, MSAS, EGNOS Audio Support SonicHub 2, FusionLink, JL Audio, NMEA 2000® audio systems Video Input IP Camera, RTSP, ONVIF, IP CAM-1 Waterproof Rating IPx6 / IPx7 Barcode 9420064132416
Brand: Simrad
-
