Simrad NSX 3015UW No Transducer (000-16212-001) is a 15-inch marine navigation display with IPS touchscreen, C-MAP X chart compatibility, radar and autopilot integration, and full system connectivity without sonar hardware.
- Description
- Ask a Question
-

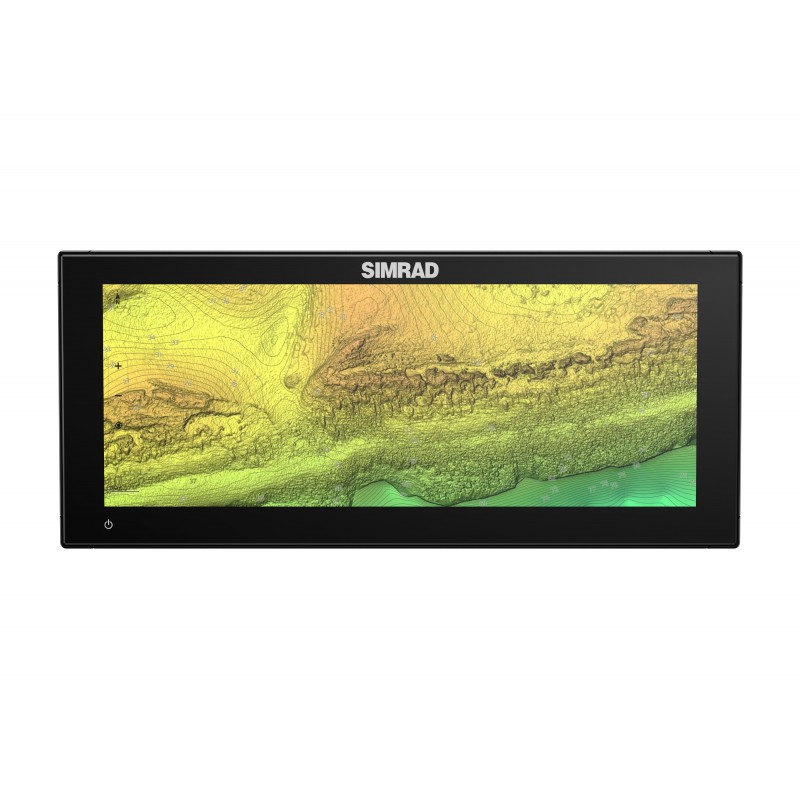

Simrad 000-16212-001 - Display NSX 3015UW No Transducer
The NSX series delivers a modern navigation system with a large 15” SolarMAX IPS multi-touch display. It provides sharp high-definition visuals, smooth performance and an intuitive interface designed for simple and efficient onboard operation. The screen ensures excellent readability from all viewing angles, even in bright sunlight and when wearing polarized lenses.
It supports C-MAP DISCOVER X and REVEAL X marine charts with detailed bathymetry, vector mapping and accurate depth contouring. Advanced autorouting, tide and current data improve route planning and navigation precision. The system is built on a redesigned operating platform for faster response, simplified use and seamless integration with marine electronics.
Features
- 15” SolarMAX IPS multi-touch display (1920x720)
- C-MAP DISCOVER X and REVEAL X chart compatibility
- Integrated WiFi and Ethernet connectivity
- NMEA 2000® support
- Autopilot integration (NAC-1, NAC-2, NAC-3, NAC-D)
- Compatible with Halo Dome Radar and AIS systems
- Internal 10Hz GPS with WAAS, MSAS, EGNOS
- Waterproof rating IPx6 / IPx7
Technical Data
Model NSX 3015UW Display Size 15” (1920x720) Sonar Compatibility 1 x 9-pin 1kW Xsonic, CHIRP 50/200 kHz, HDI, Active Imaging Radar Support Halo Dome Radar Networking 1 Ethernet port (5-pin), NMEA 2000® Micro-C (1 LEN) GPS Internal 10Hz GPS with WAAS, MSAS, EGNOS Audio Support SonicHub 2, FusionLink, JL Audio, NMEA 2000® audio systems Video Input IP Camera, RTSP, ONVIF, IP CAM-1 Waterproof Rating IPx6 / IPx7 Barcode 9420064132386
Brand: Simrad
-
