Lowrance Elite FS 12 with Active Imaging 3-in-1 (000-16440-001) features a 12-inch Full HD touchscreen, included 3-in-1 transducer, FishReveal sonar enhancement, ActiveTarget support, and full networking and navigation integration.
- Description
- Ask a Question
-
Lowrance 000-16440-001 - Fishfinder Elite 12 Fs Transducer Active Imaging 3-In-1
Fishfinder Elite FS 12 system with SolarMAX Full HD multitouch display and Active Imaging 3-in-1 transducer for high performance sonar imaging, navigation and marine system integration.
Display Technology
SolarMAX Full HD multitouch touchscreen provides high resolution visuals with wide viewing angles and simple touch control for efficient operation.
Sonar And Imaging
- Active Imaging 3-in-1 CHIRP, SideScan and DownScan transducer included
- FishReveal technology for enhanced fish target separation and clarity
- 800 kHz ultra-detailed imaging for short range precision
- 455 kHz mode with range up to 60 m and extended detail coverage beyond 36 m
- Prepared for Active Target high definition sonar module connection
Mapping And Navigation
- C-MAP Genesis Live real-time mapping with adjustable contours down to 15 cm
- Custom bathymetry colors, transparency and density settings
- MicroSD card support for map storage
- Dock-to-dock autorouting and Easy Routing with compatible charts
- Requires Navionics Platinum or C-MAP Discover/Reveal subscription charts
- Boat parameters required for route calculation (draft, width, height)
- Navigation support must not replace safe navigation practices
Connectivity And Integration
- Full network connectivity between Elite FS and HDS displays
- Wi-Fi and Ethernet sharing for sonar and cartography data
- Integration with Halo radar systems (5605504/505)
- Mobile device integration for calls and messages
- NMEA 2000 engine data monitoring support
- Compatible with Mercury, Suzuki, Yamaha and Evinrude engines
Installation And Design

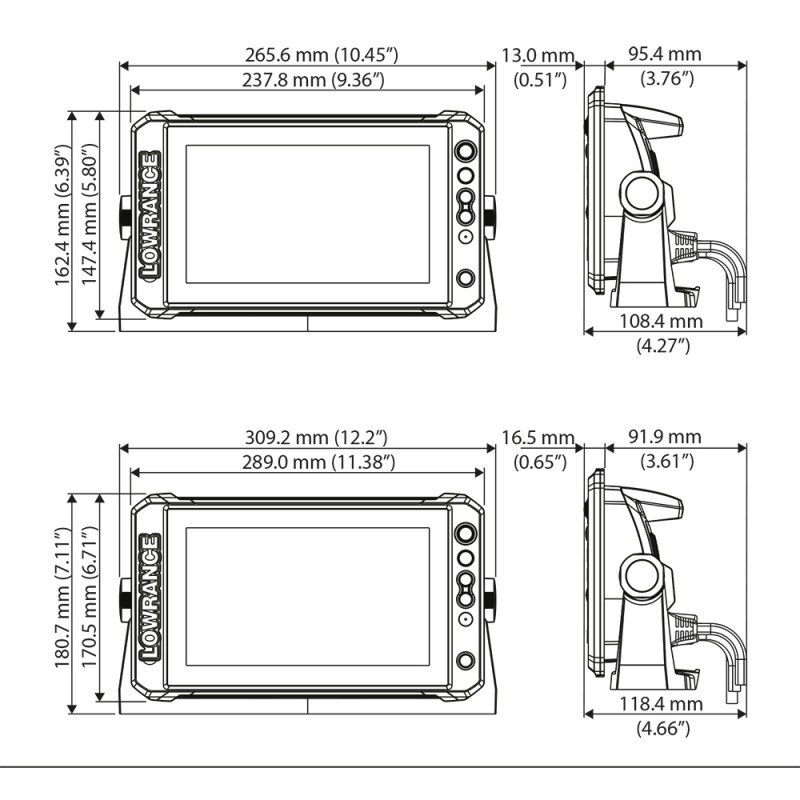

- HDS-style recessed mounting dimensions
- Protective cover included
Technical Data
Product 5605383 Model ELITE FS 12 Display 12" (1280X800) Supplied Transducer Active Imaging 3-in-1 (83/200Hz + 455/800kHz transom mount) Connections Network, Wi-Fi, NMEA 2000 Barcode 9420064137558
Brand: Lowrance
-
