ID
1373911
$ 2,769.15
1-2 weeks delivery time
-
+
Lowrance Elite FS 10 with Active Imaging 3-in-1 (000-16438-001) includes a 10-inch Full HD touchscreen, 3-in-1 transducer with CHIRP, SideScan and DownScan, FishReveal technology, ActiveTarget support, and full network integration.
- Description
- Ask a Question
-

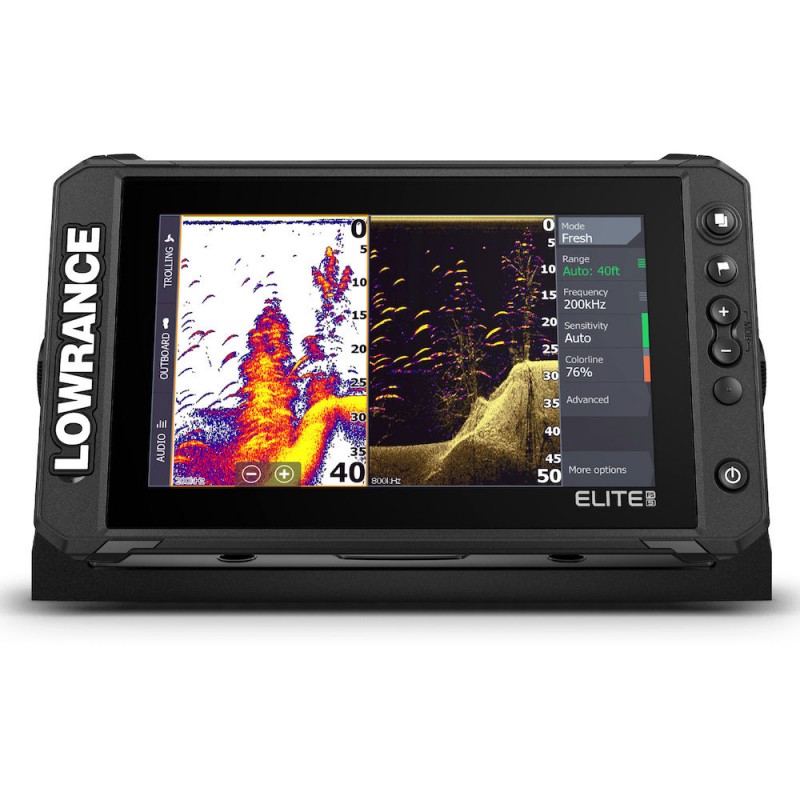

Lowrance 000-16438-001 - Fishfinder Elite 10 Fs Transducer Active Imaging 3-In-1
Fishfinder Elite FS 10 system with 10" SolarMAX Full HD multitouch display and Active Imaging 3-in-1 transducer for high detail sonar performance and advanced fishing imaging capabilities.
Display Technology
SolarMAX Full HD multitouch touchscreen delivers high resolution images visible from multiple angles with simple touch control for intuitive operation.
Sonar And Imaging
- Active Imaging 3-in-1 CHIRP, SideScan and DownScan transducer included
- FishReveal technology for improved target separation and sharper fish identification
- 800 kHz ultra-detailed imaging for short range precision
- 455 kHz mode with range coverage up to 60 m and extended visibility beyond 36 m detail zone
- Prepared for Active Target high definition sonar module connection
Mapping And Navigation
- C-MAP Genesis Live real-time mapping with intuitive chart creation
- Contour intervals down to 15 cm with adjustable density and transparency
- Custom bathymetry color settings for advanced map detail
- Maps can be saved directly to MicroSD card
- Dock-to-dock autorouting and Easy Routing based on chart data and boat specifications
- Requires draft, width and height input for route calculation
- Compatible with Navionics Platinum (subscription required) or C-MAP Discover/Reveal charts
- Navigation support system not intended as sole navigation reference
Connectivity And Integration
- Full network connectivity between Elite FS and HDS units
- Data sharing via Wi-Fi and Ethernet connection
- Integration with Halo radar systems (5605504/505)
- Mobile device integration for calls and message notifications
- NMEA 2000 engine data monitoring system
- Compatible with Mercury, Suzuki, Yamaha and Evinrude engines
Installation And Design

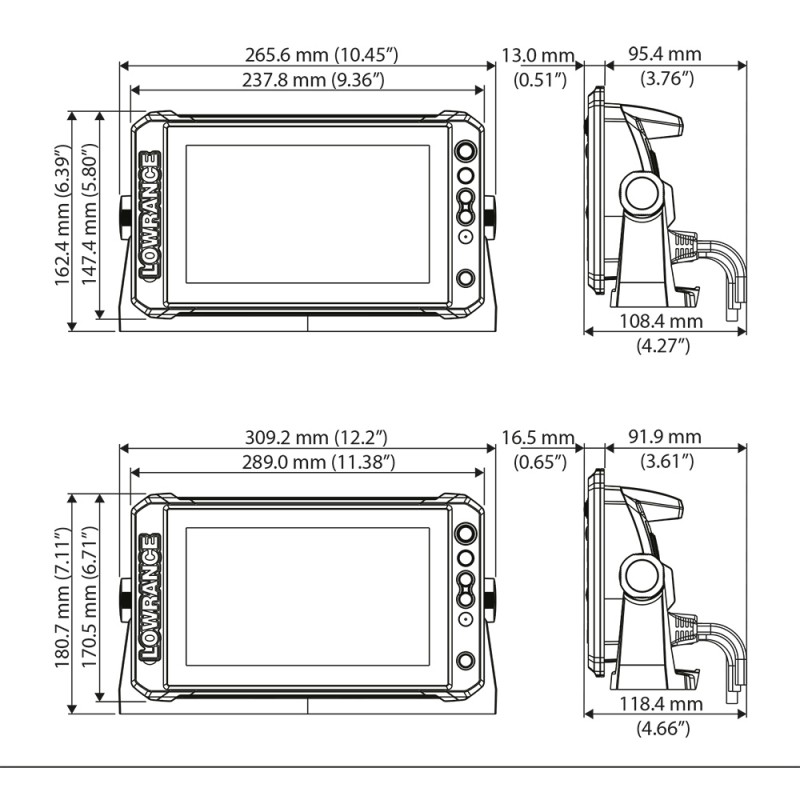

- Dimensions compatible with HDS recessed mounting systems
- Protective cover included
Technical Data
Product 5605381 Model ELITE FS 10 Display 10" (1280X800) Supplied Transducer Active Imaging 3-in-1 (83/200Hz + 455/800kHz transom mount) Connections Network, Wi-Fi, NMEA 2000 Barcode 9420064137534
Brand: Lowrance
-
