The Lowrance 000-16115-001 Eagle 7 comes with a SplitShot™ HD transducer, FishReveal™, and IPS display for clear viewing. It has a 7" screen, supports worldwide basemap and C-MAP® Discover™, runs on 12 V DC, and features microSD chart support. It can store 3000 waypoints, 100 routes, and 100 trails, and is IPX7 rated.
- Description
- Ask a Question
-

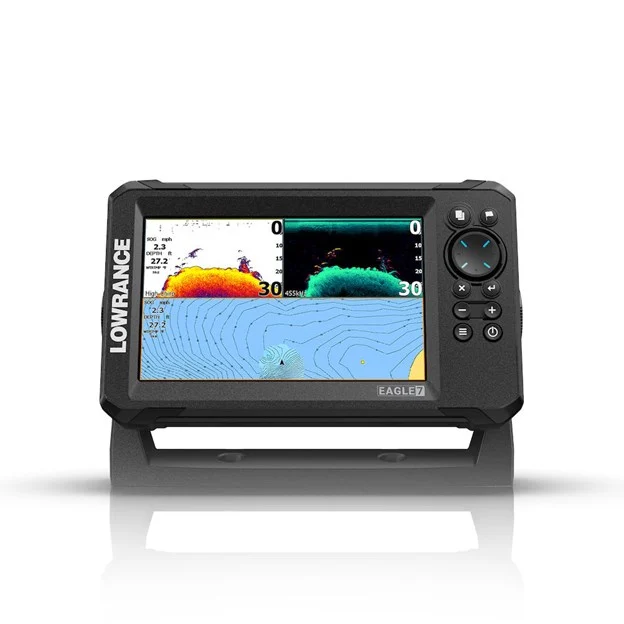

Lowrance 000-16115-001 - Fishfinder Eagle 7 With Splitshot™ HD
Easy to install and operate, the Eagle 7 features a SplitShot™ HD transducer with FishReveal™ technology and an IPS display for clear viewing in all lighting conditions. It includes a worldwide basemap and supports chart upgrades.
Display
Display Size 7 inches Resolution 800 x 480 Brightness 1000 nits Backlight Color Pure White LED Viewing Angles 80° top/bottom, 80° left/right
Connectivity And Cartography
SD Card Slot 1 x microSD up to 32GB Charts Supported C-MAP® Discover™ Cartography Included Worldwide basemap chart
Electrical And Environment
Supply Voltage 12 V DC (10.8–17 VDC) Power Consumption Max 550 mA @ 12 V DC Power Consumption Min 250 mA @ 12 V DC Recommended Fuse 3 A Operating Temperature -15°C to 55°C Storage Temperature -20°C to 60°C Humidity 95% RH at 60°C for 48 hours Waterproof Rating IPX7 (card door closed)
GPS And Physical
GPS Correction SBAS Time To First Fix 45 s Waypoints / Routes / Trails 3000 / 100 / 100 Dimensions W x H x D 225.9 mm x 139.8 mm x 88.5 mm Mounting Type Gimbal bracket or dash mount Weight 0.67 kg Interface 8-way keypad, zoom ±, menu, waypoint, power/backlight
Brand: Lowrance
-
