Kohler 45EFOZDJ is a 45 kW, 400 V, 50 Hz generator set for marine/industrial use, driven by a John Deere Tier II (50 Hz) diesel engine at 1500 rpm with a seawater/coolant heat exchanger, and using a brushless 4‑pole synchronous alternator with Class H insulation and ±0.5% voltage/frequency regulation; it includes a DEC 3500 controller and a sound-absorbing enclosure, with options like remote display, paralleling, and certifications (Lloyd’s/DNV/RINA).
- Description
- Ask a Question
-

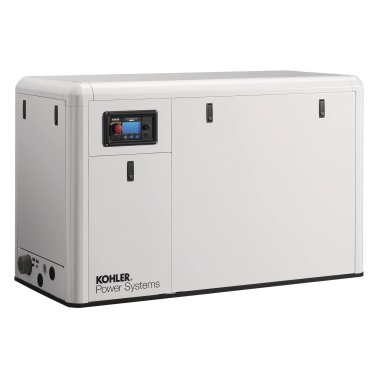

Kohler 45EFOZDJ Generator Set 45kW 400V 50Hz 24V Sound Enclosure
The Kohler 45EFOZDJ generator set is engineered to provide dependable and continuous power for marine and industrial installations. Powered by a high-quality John Deere diesel engine and managed by the advanced DEC 3500 digital controller, this generator set offers precise monitoring, stable electrical output, and long-term reliability. The sound-absorbing cocoon ensures reduced noise levels while allowing easy maintenance access.
Engine Characteristics
This generator set is equipped with a John Deere diesel engine compliant with Tier II emission standards for 50 Hz operation and Tier III for 60 Hz versions. The 4-stroke engine features direct injection and an efficient seawater and coolant heat exchanger for optimal thermal performance.
Engine Manufacturer John Deere Engine Type Diesel, 4-Stroke, Direct Injection Emission Standard Tier II (50 Hz) / Tier III (60 Hz) Rated Speed 1500 rpm Cooling System Seawater / Coolant Exchanger
Electrical Characteristics
The electrical system features a Kohler 4-pole synchronous generator with a brushless design and permanent magnet excitation. Class H insulation ensures high thermal resistance, while precise voltage and frequency regulation protect sensitive electrical loads.
Rated Power 45 kW Frequency 50 Hz Voltage 400 V Generator Type 4-Pole, Synchronous, Brushless Insulation Class Class H Voltage Regulation ± 0.5% Frequency Regulation ± 0.5% Output Configuration 12-Wire, Up to 480 V Three-Phase Starting Voltage 24 V, Ground-Isolated
Standard Equipment
- DEC 3500 digital controller
- Sound-absorbing enclosure
- Manual three-pole circuit breaker
DEC 3500 Digital Control System
The DEC 3500 digital control system integrates all monitoring and control functions into a single interface, ensuring safe and efficient generator operation.
- Integrated generator control and monitoring
- On / Off / Reset / Auto control modes
- Rotary knob for intuitive menu navigation
- Emergency stop function
- Large, high-brightness LCD display
- Detailed display of voltage, current, power, alarms, and faults
- Engine diagnostics with history recording up to 1000 events
- Parallelization management
- CANbus SAE J-1939 and NMEA2000 outputs
- USB interface
Options
- Starting voltage: 12 V or 24 V
- Paralleling with P-Gen cable
- Motorized three-pole or four-pole circuit breaker
- Remote control with digital display and indicator lights (25 ft to 100 ft)
- Keel cooling and dry exhaust system
- Certifications: Lloyd’s Register, DNV, RINA
Brand: Kohler
Model: 45EFOZDJ
-
