Kohler 70EFOZDJ is a 70 kW, 400 V, 50 Hz generator set designed for high-demand continuous power, powered by a John Deere Tier II (50 Hz) diesel engine at 1500 rpm with direct injection and seawater/coolant heat exchanger cooling, paired with a brushless 4‑pole synchronous alternator (Class H) and DEC 3500 controls, plus a sound-absorbing cocoon and paralleling/remote-control options.
- Description
- Ask a Question
-

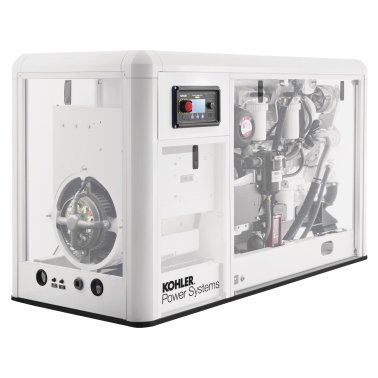

Kohler 70EFOZDJ Generator 70kW 400V 50Hz 24V Sound Enclosure
The Kohler 70EFOZDJ generator is engineered for high-demand marine and industrial applications requiring powerful, stable, and continuous electrical supply. Driven by a reliable John Deere diesel engine and controlled by the advanced DEC 3500 digital controller, this generator offers precise monitoring, excellent power quality, and long service life. The sound-absorbing cocoon ensures reduced noise levels while maintaining easy access for maintenance.
Engine Characteristics
This generator is equipped with a John Deere diesel engine compliant with Tier II emission standards for 50 Hz operation and Tier III for 60 Hz versions. The 4-stroke engine features direct injection and an efficient seawater and coolant heat exchanger for optimal cooling performance.
Engine Manufacturer John Deere Engine Type Diesel, 4-Stroke, Direct Injection Emission Standard Tier II (50 Hz) / Tier III (60 Hz) Rated Speed 1500 rpm Cooling System Seawater / Coolant Exchanger
Electrical Characteristics
The electrical system is based on a Kohler 4-pole synchronous generator with a brushless design and permanent magnet excitation. Class H insulation ensures high thermal resistance, while precise voltage and frequency regulation guarantee stable output for sensitive equipment.
Rated Power 70 kW Frequency 50 Hz Voltage 400 V Generator Type 4-Pole, Synchronous, Brushless Insulation Class Class H Voltage Regulation ± 0.5% Frequency Regulation ± 0.5% Output Configuration 12-Wire, Up to 480 V Three-Phase Starting Voltage 24 V, Ground-Isolated
Standard Equipment
- DEC 3500 digital controller
- Sound-absorbing enclosure
- Manual three-pole circuit breaker
DEC 3500 Digital Control System
The DEC 3500 digital control system integrates complete control and monitoring of the generator set, providing safe operation, detailed diagnostics, and parallelization capabilities.
- Integrated generator monitoring and control
- On / Off / Reset / Auto control modes
- Rotary knob for intuitive menu access
- Emergency stop function
- Large, high-brightness LCD display
- Detailed display of voltage, current, power, alarms, and faults
- Engine diagnostics with history recording up to 1000 events
- Parallelization management
- CANbus SAE J-1939 and NMEA2000 outputs
- USB interface
Options
- Starting voltage: 12 V or 24 V
- Paralleling with P-Gen cable
- Motorized three-pole or four-pole circuit breaker
- Remote control with digital display and indicator lights (25 ft to 100 ft)
- Keel cooling and dry exhaust system
- Certifications: Lloyd’s Register, DNV, RINA
Brand: Kohler
Model: 70EFOZDJ
-
