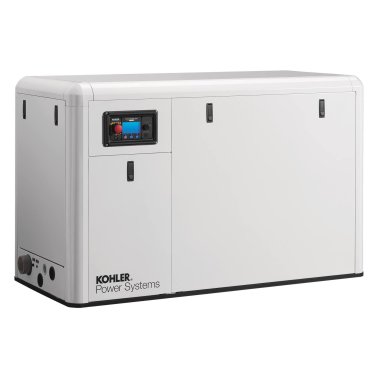

The Kohler 40EKOZD marine generator set offers 40 kW of consistent 60 Hz power for demanding marine environments, featuring a DEC 3500 digital controller, 4-stroke diesel engine, and seawater/fresh water heat exchanger, along with a sound-absorbing cocoon, integrated line breaker, and advanced monitoring and control capabilities.
- Description
- Ask a Question
-
Kohler 40EKOZD Generator Set 40 kW 380V 60Hz 12V Cocoon Reconnectable
The Kohler 40EKOZD marine generator set is designed for high-power marine applications requiring reliable and precise electrical output. Equipped with the DEC 3500 digital controller, this generator integrates advanced monitoring, control, and protection functions. With a maximum output of 40 kW at 60 Hz, it ensures stable performance in demanding environments.
Engine Characteristics
- Kohler diesel engine
- 4-stroke configuration
- Operating speed: 1500 rpm
- Seawater / fresh water heat exchanger
Electrical Characteristics
Rated Power 40 kW Frequency 60 Hz Voltage 380 V Generator Type Synchronous Kohler Generator Insulation Class Class H Voltage Regulation ± 1% Battery Charging 12 V or 24 V, 10 A module
Standard Equipment
- Sound-absorbing aluminium cocoon
- DEC 3500 digital controller
- Line breaker integrated in the cocoon
- Front panel with easy access to consumables
DEC 3500 Digital Control
- Integrated generator monitoring and control
- On / Off / Reset / Auto control modes
- Rotary knob for menu access
- Emergency stop function
- Large high-brightness LCD screen
- Display of voltage, current, power, alarms, and fault information
- Engine diagnostics with history storage up to 1000 events
- CANbus SAE J-1939 and NMEA2000 outputs
- USB interface
- Parallelization management and power control
Options
- Starting voltage: 12 V or 24 V
- Digital remote control
- Anti-siphon kit
- Bipolar insulation for metal enclosures
- Paralleling system for models up to 20.5 kW
Technical Summary
Model 40EKOZD Engine Manufacturer Kohler Frequency 60 Hz Power Output 40 kW
Brand: Kohler
-
