The Kohler 32EKOZD marine generator set delivers 32 kW of stable power at 60 Hz for marine applications, featuring a DEC 3500 digital controller, 4-stroke diesel engine, and seawater/fresh water heat exchanger, all housed in a sound-absorbing aluminium cocoon with advanced monitoring and control functions.
- Description
- Ask a Question
-

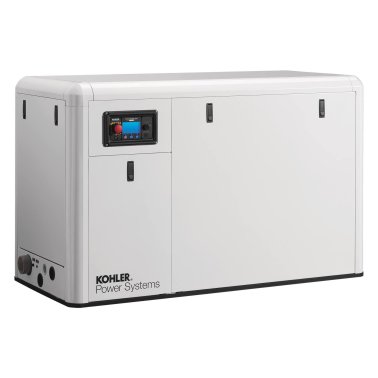

Kohler 32EKOZD Generator Set 32 kW Tri 60Hz 12V Cocoon Reconnectable
The Kohler 32EKOZD marine generator set is designed to deliver reliable and stable power for demanding marine applications. It is equipped with the advanced DEC 3500 digital controller, which integrates full generator monitoring, control, and protection. This model operates at 60 Hz and provides a rated power output of 32 kW, ensuring consistent electrical performance.
Engine Characteristics
- Kohler diesel engine
- 4-stroke engine
- Operating speed: 1500 rpm
- Seawater / fresh water heat exchanger
Electrical Characteristics
Rated Power 32 kW Frequency 60 Hz Phase Three Phase (TRI) Voltage 380 V Generator Type Synchronous Kohler Generator Insulation Class Class H Voltage Regulation ± 1% Battery Charging 12 V or 24 V, 10 A module
Standard Equipment
- Sound-absorbing aluminium cocoon
- DEC 3500 digital controller
- Line breaker integrated in the cocoon
- Front panel with easy access to consumables
DEC 3500 Digital Control
- Integrated generator control and monitoring
- On / Off / Reset / Auto control functions
- Rotary knob for menu navigation
- Emergency stop function
- Large high-brightness LCD display
- Real-time display of voltage, current, power, alarms, and faults
- Engine diagnostics with history recording up to 1000 events
- CANbus SAE J-1939 and NMEA2000 outputs
- USB interface
- Parallelization management and power control
Options
- Starting voltage: 12 V or 24 V
- Digital remote control
- Anti-siphon kit
- Bipolar insulation for metal shells
- Paralleling system for models up to 20.5 kW
Technical Summary
Model 32EKOZD Engine Manufacturer Kohler Frequency 60 Hz Power Output 32 kW
