ID
1323348
$ 123.94
1-2 weeks delivery time
-
+
The Blue Sea 5510e e-Series Dual Circuit Battery Switch simultaneously switches two isolated battery banks and is rated 350A continuous, 525A intermittent (5 min), and 700A cranking per circuit (30 sec) for systems up to 32V DC. It features 3/8"-16 (M10) tinned copper studs with 140 in-lb torque rating, supports 4/0 AWG cables, and provides ignition protection with IP66 rating. Weight: 1.16 lb (0.53 kg).
- Description
- Ask a Question
-

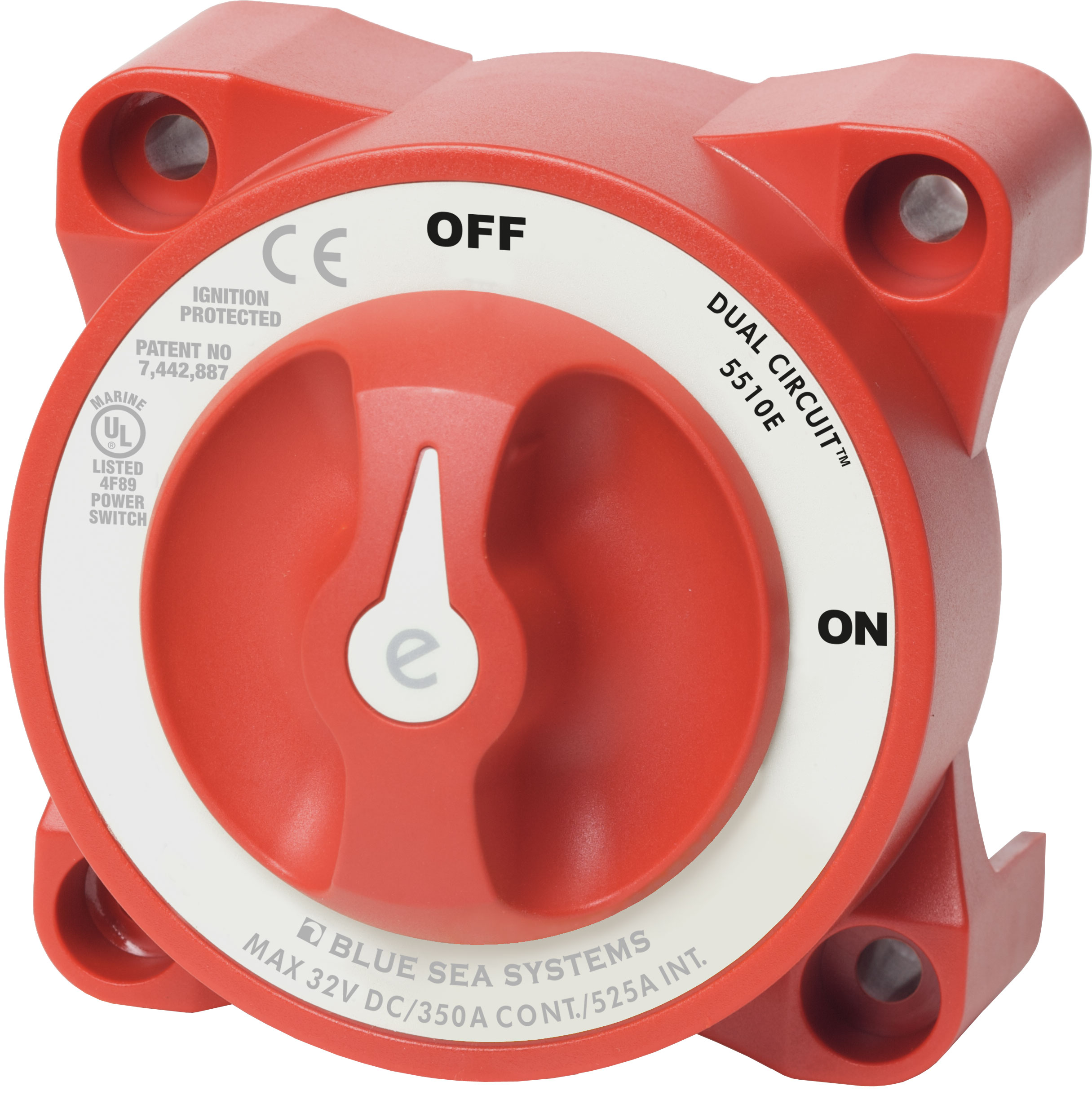

Blue Sea 5510e – e-Series Dual Circuit Battery Switch, 350A Continuous, 32V DC, M10 Studs, Red
The Blue Sea 5510e e-Series Dual Circuit Battery Switch is designed to simultaneously switch two isolated battery banks, providing dependable power control for dual-circuit electrical systems. Its ignition-protected construction allows safe installation aboard gasoline powered boats, while the case design supports surface or rear panel mounting for installation flexibility.
Key Features
- Dual circuit switch for two isolated battery banks
- Simultaneously switches both circuits
- 350A continuous current rating
- 525A intermittent rating (5 minutes)
- 700A cranking rating per circuit (30 seconds)
- Supports systems up to 32V DC
- 3/8"-16 (M10) tinned copper studs for conductivity and corrosion resistance
- Supports cable size up to 4/0 AWG (120mm²)
- Ignition protected for marine installations
- IP66 rated construction
- Flexible mounting: surface or rear panel
Technical Specifications
Model 5510e Series e-Series Switch Type Dual Circuit Color Red Switch Positions 2 Battery Inputs 2 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32V DC Continuous Rating 350A Intermittent Rating 525A (5 min) Starting Rating (30 sec) 700A per circuit Switching Rating 25A Terminal Stud Size 3/8"-16 (M10) Stud Material Tinned Copper Terminal Stud Torque 140 in-lb (15.82 Nm) Cable Clearance 1.10 in (27.94 mm) for 4/0 AWG Mounting Holes Accept 1/4" (M6) screw Weight 1.16 lb (0.53 kg)
Optional Accessories
- 7902 – Battery Switch ICON Label Kit
Compliance
- CE Marked
- Ignition Protected
- IP66 Rated
- ISO 8846
- SAE J1171
- UL 1107
- UL 1500
-
