ID
1224530
$ 9.20
1-2 weeks delivery time
-
+
The BEP CLB-05 is a CLB Series push reset thermal circuit breaker rated at 5A, designed for reliable overcurrent protection in marine / ignition-protected applications. It supports an interrupting capacity of 2500A, is rated within the series range of 200A @ 250V AC interrupt capacity, and operates in a temperature range of 14–140°F (-10–60°C).
- Description
- Ask a Question
-

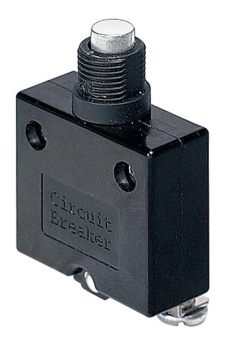

BEP CLB-05 – CLB Series Push Reset Thermal Circuit Breaker 5A, 2500A Interrupting Capacity
The BEP CLB-05 is a CLB Series push reset thermal circuit breaker designed to provide dependable overcurrent protection for marine electrical installations. Built for ignition-protected / marine environments, this breaker offers thermal protection with a manual push-to-reset function.
Key Specifications
Part Number CLB-05 Series CLB Series Type Push Reset Thermal Circuit Breaker Current Rating 5A Interrupting Capacity 2500A Operating Temperature 14–140°F (-10–60°C) Interrupt Capacity (Series) 200A @ 250V AC Interrupt Capacity
Approvals
- UL
- cUL
- TUV
- CE
- UL1500
- ISO8846 (ignition protection / marine)
Notes
- DSP versions include circuit breaker, washer, and boot
- Boot required to install breaker (CLB-BOOT)
- Washer: PMCC-10
-
