The BEP CLB-25 is a CLB Series push reset thermal circuit breaker rated at 25A, designed for dependable overcurrent protection in marine / ignition-protected electrical systems. It is rated 200A @ 250V AC interrupt capacity, features an interrupting capacity of 2500A, and provides a resettable overload capacity of 10x the rated current. Operating temperature range is 14–140°F (-10–60°C).
- Description
- Ask a Question
-

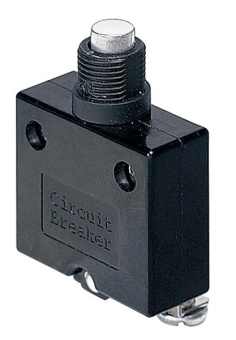

BEP CLB-25 – CLB Series Push Reset Thermal Circuit Breaker 25A, 2500A Interrupting Capacity
The BEP CLB-25 is a CLB Series push reset thermal circuit breaker designed to provide reliable protection against overcurrent conditions in marine electrical systems. With a thermal trip mechanism and manual push-to-reset function, it helps protect wiring and connected equipment in ignition-protected / marine applications.
Key Specifications
Part Number CLB-25 Series CLB Series Type Push Reset Thermal Circuit Breaker Current Rating 25A Interrupt Capacity 200A @ 250V AC Interrupting Capacity 2500A Resettable Overload Capacity 10 x rated current Operating Temperature 14–140°F (-10–60°C) -
