ID
824085
$ 204.67
1-2 weeks delivery time
-
+
The BEP CG2-4W-F-W is a Contour Generation II Spray Proof DC switch panel in a 4-switch configuration with fuses and a white finish. It can be installed vertically or horizontally and is built with a molded plastic switch tray featuring an integrated rubber gasket and seal, plus a clear molded cover with a rubber over-mold to allow flexible front switch operation while providing a clear label window for label backlighting. The panel includes a replaceable clip-on contour wave, concealed mounting screws, backlit LEDs, and watertight sealing features designed for marine environments. The installed switches are rated at 16A DC.
- Description
- Ask a Question
-

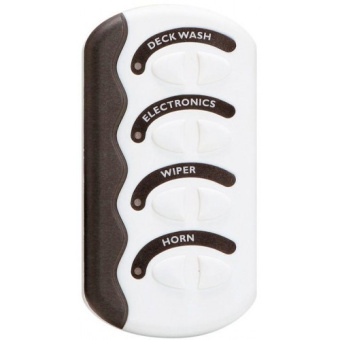

BEP CG2-4W-F-W – Contour Generation II Spray Proof Switch Panel, 4 Switches, with Fuses, White
The BEP CG2-4W-F-W is part of the Contour Generation II Spray Proof Range and provides a compact, marine-ready control solution for DC circuits. This panel is supplied in a 4-switch configuration and includes fuses. It can be mounted vertically or horizontally and is designed for use in environments where spray protection and durable construction are essential.
Panel Configuration
- Part #: CG2-4W-F-W
- Number of switches: 4
- Switch function: On/Off
- Fuses: Yes
- Switch rating: 16A DC
- Mounting orientation: Vertical or Horizontal
- Color: White
Design & Construction
- Molded plastic switch tray with a rubber gasket and seal molded into the plastic
- Clear molded cover with rubber over-mold for flexible operation of the switches from the front of the panel
- Clear label window designed for label backlighting
- Mounting screws covered by switch cover
Key Features
- Replaceable clip-on contour wave (customized colors available for OEMs)
- Backlit LEDs
- Flexible overshot cover allows for easy switch operation
- Ribbed gasket provides a watertight seal with switch cover
- Molded gasket on panel base creates a watertight seal against the mounting surface
- Unique design allows labels to be read whether mounted vertically or horizontally
Labels
- Panel supplied standard with label set SET-G2-1
- Label set SET-G2-2 is ordered separately
-
