The BEP CG2-4W-F is a Contour Generation II Spray Proof DC switch panel supplied in a 4-switch configuration with fuses. It can be mounted vertically or horizontally and features a molded plastic switch tray with an integrated rubber gasket and seal, plus a clear molded cover with a rubber over-mold that allows flexible front switch operation and provides a clear label window for label backlighting. The panel includes a replaceable clip-on contour wave, concealed mounting screws, backlit LEDs, and watertight sealing features designed for marine installations. The installed switches are rated at 16A DC.
- Description
- Ask a Question
-

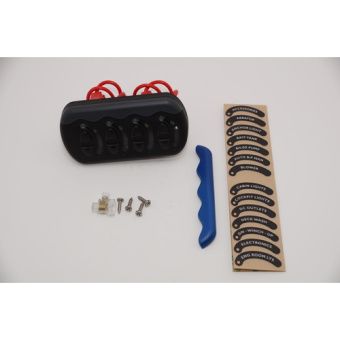

BEP CG2-4W-F – Contour Generation II Spray Proof Switch Panel, 4 Switches, with Fuses
The BEP CG2-4W-F is part of the Contour Generation II Spray Proof Range and provides a compact switching solution for DC systems. This panel is supplied in a 4-switch configuration and includes fuses. It can be mounted vertically or horizontally and is designed for use in marine environments.
Panel Configuration
- Part #: CG2-4W-F
- Number of switches: 4
- Switch function: On/Off
- Fuses: Yes
- Switch rating: 16A DC
- Mounting orientation: Vertical or Horizontal
Design & Construction
- Molded plastic switch tray with rubber gasket and seal molded into the plastic
- Clear molded cover with rubber over-mold for flexible switch operation through the front of the panel
- Clear label window designed for label backlighting
- Mounting screws covered by switch cover
Key Features
- Replaceable clip-on contour wave (customized colors available for OEMs)
- Backlit LEDs
- Flexible overshot cover allows for easy switch operation
- Ribbed gasket provides a watertight seal with switch cover
- Molded gasket on panel base creates a watertight seal against the mounting surface
- Unique design allows labels to be read whether mounted vertically or horizontally
Labels
- Panel supplied standard with label set SET-G2-1
- Label set SET-G2-2 is ordered separately
-
