ID
823994
$ 506.23
1-2 weeks delivery time
-
+
The BEP 901V is a vertical DC circuit breaker panel (no meter) designed for 12V DC systems and providing protected distribution for 8 loads. It features marine grade power coated aluminium, green LED backlit labels, a stylish clip-on contour fascia, and ABYC standard voltage indication, with red system status shown on LED. The panel is supplied with label set(s) and busbar, includes a 6-way negative bus, and is rated for 160A maximum amperage. Circuit breaker configuration (single pole) is 2 x 5A, 2 x 10A, 3 x 15A, 1 x 20A, with overall panel size 7.9" x 5" (200 x 127 mm) and a mounting depth of 2.5" (64 mm).
- Description
- Ask a Question
-

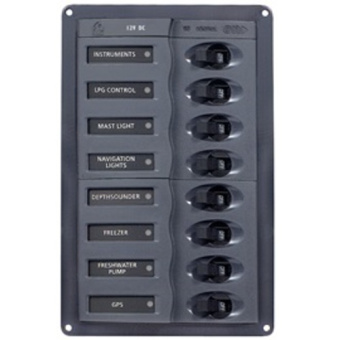

BEP 901V – DC Circuit Breaker Panel (No Meter), Vertical, 8 Loads, 12V, 160A Max, 200 x 127 mm
The BEP 901V is a DC circuit breaker panel (no meters) designed for protected DC power distribution in 12V electrical systems. This vertical panel supports 8 loads and is supplied with label set(s) and busbar for organized installation and circuit identification.
Main Features
- Total positions: 8 loads
- Nominal voltage: 12V
- Maximum amperage: 160A
- Negative bus: 6-way
- Material: Marine grade power coated aluminium
- Voltage indication: ABYC standard voltage indication
- Backlighting: Green LED backlit labels
- System status indication: Red systems on LED
- Fascia: Stylish clip on contour fascia
- Supplied with: Label set(s) and busbar
Circuit Breaker Configuration (Single Pole)
Breaker Rating Quantity 5A 2 10A 2 15A 3 20A 1
Dimensions & Mounting Depth
Parameter Imperial Metric Panel size (H x W) 7.9" x 5" 200 x 127 mm Mounting depth (all panels) 2.5" 64 mm
Included
- Label sheet: 1
Notes
- 12V (24V backlighting upgrade kits available on page 73)
-
