The BEP 702-MFH-B is a compact MAXI fuse holder for heavy-load protection (30–80A), suitable for battery charger outputs and main power feeds. It features 6 mm (1/4") studs for ring terminals and supports cables up to 25 mm² (4 AWG). The fuse is clamped between tinned brass clamps for a secure connection, while the protective cover encloses exposed terminals to meet ABYC standards. Dimensions: 71 x 53 x 36 mm.
- Description
- Ask a Question
-

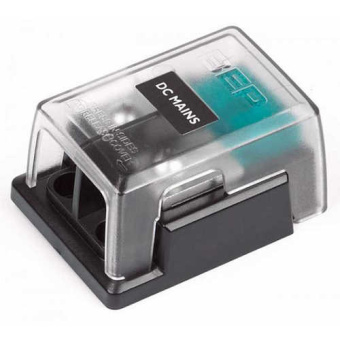

BEP 702-MFH-B – MAXI Fuse Holder, 30–80A, with Cover, 6mm Studs, for Cables up to 25mm² (4 AWG), 71 x 53 x 36 mm
The BEP 702-MFH-B is an economical and compact MAXI fuse holder designed for high-current DC installations. It is ideal for protecting circuits such as battery charger outputs and main power feeds, where secure fuse mounting and protected terminals are required.
This fuse holder supports 30A to 80A fusing for heavy loads. It is equipped with 6 mm (1/4") studs that accept ring terminals and cables up to 25 mm² (4 AWG). The fuse is clamped between tinned brass clamps to ensure reliable electrical contact. A protective cover encloses exposed terminals to help meet ABYC standards for safer installations.
Key Features
- MAXI fuse holder for heavy-load circuit protection
- Fuse rating range: 30–80A
- Designed for battery charger outputs and main feeds
- 6 mm (1/4") studs for ring terminal connections
- Supports cable sizes up to 25 mm² (4 AWG)
- Fuse clamped between tinned brass clamps for a secure connection
- Protective cover encloses terminals to help meet ABYC standards
Specifications
Part Number 702-MFH-B Product Type MAXI Fuse Holder Fuse Rating Range 30–80A Stud Size 6 mm (1/4") Max Cable Size 25 mm² (4 AWG) Dimensions (L x W x H) 71 x 53 x 36 mm -
