ID
823810
$ 578.06
1-2 weeks delivery time
-
+
The BEP 600-GDL is a microprocessor-controlled gas detector for LPG and petrol, supporting dual sensors, visual/audible alarms, self-testing, and a bilge blower provision. It operates on 10–32V DC and includes automatic shut-off solenoid (valve) control with a unique Pulse & Hold circuit to reduce power draw and heat while the valve remains on. Dimensions: 67 × 88 × 17 mm.
- Description
- Ask a Question
-

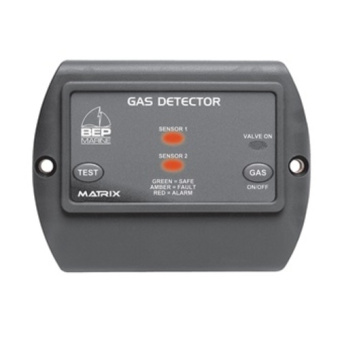

BEP 600-GDL – Contour Matrix Gas Detector for LPG & Petrol, with Solenoid Valve Control (10–32V DC)
The BEP 600-GDL Contour Matrix Gas Detector uses microprocessor control to ensure correct sensor sensitivity and reliable detection of LPG and petrol fumes. It supports two sensors and provides both visual and audible alarms to improve onboard safety.
Key Features
- Gas Detection: LPG and Petrol fumes
- Dual Sensor Capability: Supports two sensors
- Visual & Audible Alarms: Onboard alarm indication plus provision for an external alarm
- Automatic Valve Control: Automatic shut-off solenoid control
- Pulse & Hold Circuit: Reduces power consumption and heat while the valve remains on
- Self-Testing: Built-in self-test function
- Bilge Blower Provision: Output provision for blower operation
Electrical Specifications
Voltage (V DC) 10–32 Current (mA) 350 max. Alarm Sensitivity 20% lower explosive limit Current @ Out (mA) 800 max. Solenoid (mA) 700 pulse, 250 hold
Dimensions
- Size: 2.4" × 3.5" × 0.7" (67 × 88 × 17 mm)
-
