The BEP 600-GD is a microprocessor-controlled gas detector for LPG, petrol and CNG fumes, supporting one sensor (with option for a second sensor) and providing visual and audible alarms with provision for external alarm output. It operates on 10–32V DC (12V/24V systems) and includes self-testing, bilge blower provision, and compact dimensions of 67 × 88 × 17 mm.
- Description
- Ask a Question
-

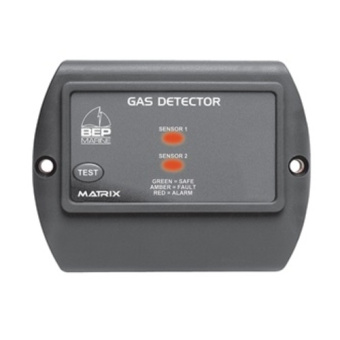

BEP 600-GD – Contour Matrix Gas Detector for LPG, Petrol & CNG (10–32V DC)
The BEP 600-GD is a microprocessor-controlled gas detector designed to detect LPG, petrol and CNG fumes and improve onboard safety through visual and audible alarms. It is supplied with one sensor and supports an optional second sensor for expanded coverage.
Key Features
- Gas Detection: LPG, Petrol and CNG fumes
- Dual Sensor Capability: Supports two sensors (one sensor supplied)
- Alarm Functions: Visual and audible alarms, provision for external alarm
- Self-Testing: Built-in self-test function
- Bilge Blower Provision: Output available for blower unit
- Remote Alarm / Blower Output: BL-SL-L output (optional for second sensor setup)
Electrical Specifications (600-GD / 600-GDL / FD-2)
Voltage (V DC) 10–32 Current (mA) 350 max. Alarm Sensitivity 20% lower explosive limit Current @ Out (mA) 800 max. Solenoid (mA) 700 pulse, 250 hold
Dimensions
- Size: 2.4" × 3.5" × 0.7" (67 × 88 × 17 mm)
System Compatibility
- Designed for 12V and 24V electrical systems
-
