ID
823758
$ 40.19
1-2 weeks delivery time
-
+
The BEP 1002006 is an SPST sealed toggle switch with Off/(On) momentary action, designed for 12V and 24V DC systems. It is rated at 25A at 12V DC and 15A at 24V DC and is supplied with 14 AWG wire leads, 10 inches long, for direct connection without terminals. This switch is suitable for applications requiring momentary control and sealed protection in marine and industrial electrical installations.
- Description
- Ask a Question
-

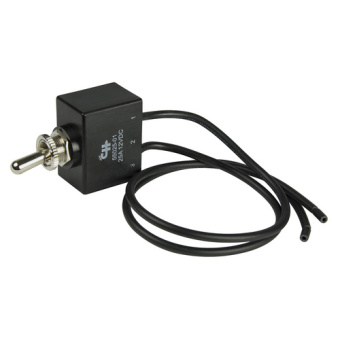

BEP 1002006 – SPST Sealed Toggle Switch with Wire Leads, Off/(On), 12/24V DC
The BEP 1002006 is an SPST (Single Pole Single Throw) sealed toggle switch designed for use in 12V and 24V DC electrical systems. It features an Off/(On) momentary switching action and is supplied with pre-attached wire leads for direct installation.
Key Features
- SPST toggle switch configuration
- Off / (On) momentary action
- Designed for 12V and 24V DC systems
- Sealed construction for protected installations
- Supplied with factory-attached wire leads
Electrical Specifications
Parameter Specification Switch Type SPST (Single Pole Single Throw) Switch Action Off / (On) momentary Nominal Voltage 12V / 24V DC Current Rating 25A at 12V DC, 15A at 24V DC
Connection Details
- Wire leads: 14 AWG
- Lead length: 10 inches
Typical Applications
The BEP 1002006 is suitable for marine and industrial electrical systems where a sealed, momentary-action toggle switch with wire leads is required for reliable circuit control.
-
