ID
823731
$ 25.96
1-2 weeks delivery time
-
+
The BEP 1001713 is a DPDT rocker switch with (On)-Off-(On) momentary operation for 12 V DC systems. Rated at 25 A at 12 V DC and equipped with 1/4" blade terminals, it is designed for applications requiring temporary dual-direction or dual-circuit control.
- Description
- Ask a Question
-

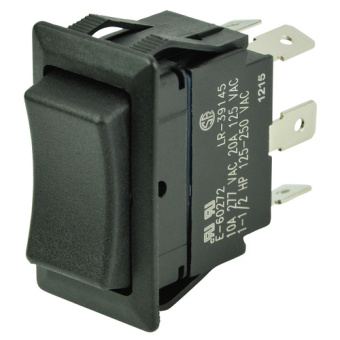

BEP 1001713 – DPDT Rocker Switch, (On)-Off-(On), 12V DC
The BEP 1001713 is a double pole, double throw (DPDT) rocker switch designed for marine and industrial electrical control systems. Its (On)-Off-(On) momentary switching configuration allows temporary activation in either direction, returning to the center Off position when released.
Designed for 12 V DC systems, this switch is suitable for applications requiring controlled, momentary operation of two independent circuits from a single switch.
- Switch type: DPDT rocker switch
- Switch action: (On) / Off / (On) – momentary
- Nominal voltage: 12 V DC
- Current rating: 25 A at 12 V DC
- Termination type: 1/4" blade terminals
- LED indication: None
The BEP 1001713 is shock and weather resistant, making it suitable for harsh marine and industrial environments. Typical applications include trim tabs, power hatches, winches, wipers, and directional motor control where momentary switching is required.
-
