Actisense NMEA 2000 to Wi-Fi Gateway

NMEA 2000 to Wi-Fi Gateway

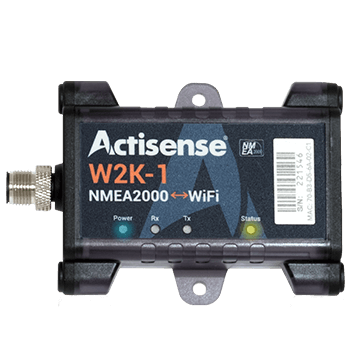

The W2K-1 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway, ideal for connecting your NMEA 2000 network to Wi-Fi-enabled devices like laptops, tablets, or smartphones. It also features a built-in data logger and Actisense-i diagnostic tools for monitoring and optimizing network health.

• Data Transfer: Transfers NMEA 2000 data to Wi-Fi-connected devices and converts it to NMEA 0183 using Actisense’s advanced conversion engine.
• Compatibility: Fully compatible with the most popular marine apps on the market.
• Actisense-i Tools: Includes a suite of diagnostic tools for monitoring network health.

Power Supply

The W2K-1 operates within a wide power range and offers robust protection against electrical issues, making it perfect for marine environments.

• Supply Voltage: 9 to 30V DC (NMEA 2000 Port)
• Average Current: 70mA @ 12V DC, 100mA @ 9V DC
• Load Equivalent Number (LEN): 2
• Protection: Continuous reverse polarity protection and transient overvoltage protection up to 40V

Wi-Fi Radio

The W2K-1’s Wi-Fi capabilities ensure smooth and reliable data transfer to your connected devices. It supports the latest Wi-Fi standards for fast and secure communication.

• Compatibility: IEEE 802.11 b/g/n
• Speed: Up to 150Mbps (802.11n)
• Frequency Band: 2.4GHz ~ 2.5GHz
• Max Output Power: 20 dBm
• Antenna: Integrated internal antenna
• Range: 30 meters (open space)
• Security: WPA_PSK, WPA2_PSK, WPA_WPA2_PSK

Configuration

Configuring the W2K-1 is easy with support for both TCP and UDP broadcasting, as well as multiple data servers for your convenience.

• IP Support: TCP and UDP broadcast
• Data Servers: Three separate data servers
• Data Protocols: NMEA 0183 & Five proprietary protocols
• Security: Configurable SSID and Password with unique defaults per device

Diagnostics

The W2K-1 provides built-in diagnostics for monitoring its operation and ensuring that everything is running smoothly.

• Power LED: Blue
• NMEA 2000 Tx LED: Orange
• NMEA 2000 Rx LED: Green
• Status LED: Yellow
• micro SD card: 8GB Industrial Grade, FAT32

Mechanical

The W2K-1 features a compact, durable design that can withstand the tough marine environment. It’s built to last with high-quality materials.

• Housing Material (Body): Polycarbonate
• Housing Material (Endcaps): PBT
• NMEA 2000 Connector: M12 Male (A polarized) connector molded into the case
• Connector Material: Nickel-plated brass
• Weight: 80g
• Dimensions: 106mm (L) x 73mm (W) x 24mm (H)

Environmental

The W2K-1 is built to operate in harsh conditions, offering a high level of protection against the elements.

• Environmental Protection: IP67
• Operating Temperature: -20°C to +55°C
• Storage Temperature: -40°C to +85°C
• Recommended Humidity: 0 – 93% RH
