The Actisense EMU-1-BAS Engine Monitoring Unit is an analogue-to-NMEA 2000 gateway designed to convert signals from conventional engine gauges and senders into NMEA 2000 data. It can monitor vital parameters including temperature, pressure, engine speed and fluid levels from up to two engines sharing a common ground. The unit provides 6 analogue inputs, 4 alarm inputs, 2 auxiliary inputs and 2 RPM inputs, operates from 9 to 35 V DC and is housed in a custom IP65 enclosure. Configuration requires a separately ordered NGX-1/NGT-1 interface.
- Description
- Ask a Question
-

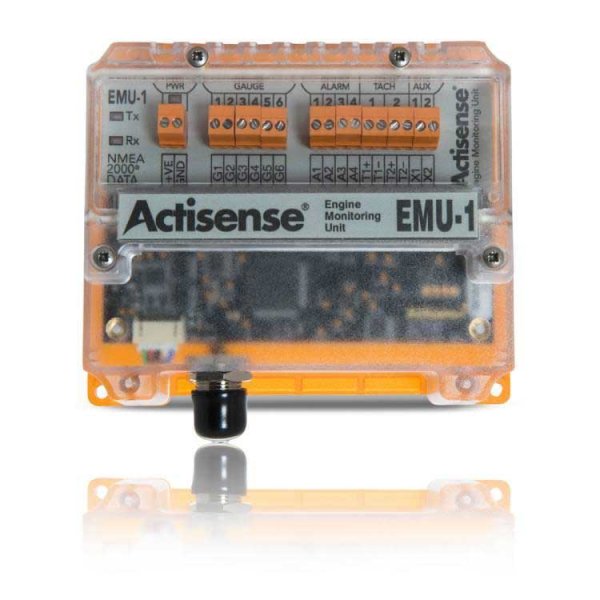

Actisense EMU-1-BAS NMEA 2000 Engine Monitoring Unit for Analogue Engine Sensors
The Actisense EMU-1-BAS Engine Monitoring Unit is a dedicated analogue-to-NMEA 2000 gateway that converts signals from analogue engine gauges and senders into NMEA 2000 data. This allows conventional analogue engine sensors to be integrated into an NMEA 2000 network and their data to be monitored on compatible NMEA 2000 displays.
The EMU-1 can monitor vital engine parameters including temperature, pressure, engine speed and fluid levels. One unit can process signals from up to two engines, provided that the engines share a common ground.
Inputs and Monitoring Capabilities
- 6 analogue input channels, for example 2 temperature, 2 oil pressure and 2 oil temperature inputs
- 4 alarm inputs
- 2 auxiliary inputs
- 2 engine speed / RPM inputs
- Supports signals from up to two engines sharing a common ground
Technical Specifications
Product Engine Monitoring Unit Model EMU-1-BAS Function Analogue engine signal to NMEA 2000 conversion Analogue Inputs 6 Alarm Inputs 4 Auxiliary Inputs 2 RPM Inputs 2 Number of Engines Up to 2 engines sharing a common ground Supply Voltage 9–35 V DC Enclosure Custom IP65 enclosure
Key Features
- Converts analogue engine sensor signals into NMEA 2000 messages
- Allows engine information to be distributed through an NMEA 2000 network
- Supports monitoring of temperature, pressure, RPM and fluid levels
- Diagnostic LEDs provide operating status information
- Wide 9–35 V DC supply voltage compatibility
The EMU-1 must be configured using an NGX-1/NGT-1 interface. This interface must be ordered separately.
-
