SKU:
CN AC-A2K-TER-U
€ 54,74
1-2 weeks delivery time
-
+
The NMEA 2000 Smart Universal Micro Terminator (TER-U) is an intelligent inline terminator designed for both male and female connections, simplifying network termination and diagnostics. It provides power and voltage issue diagnostics on the NMEA 2000 bus, and its smart functionality ensures effective network maintenance.
- Description
- Ask a Question
-

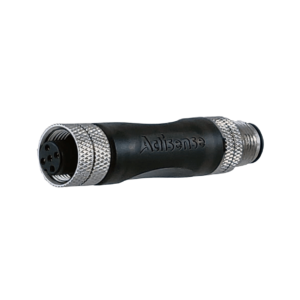

NMEA 2000 Smart Universal Micro Terminator
The TER-U is the world’s first intelligent universal inline terminator. Whether you need a male or female connection, this terminator allows for easy network termination and diagnostics. Use the built-in smart functionality to diagnose power or voltage issues on your NMEA 2000 bus. It can be used at the end of your network or as an in-line terminator in hard-to-reach locations.
- Electrical:
- Rated Current: 4A
- Rated Voltage: 36VDC
- Terminator Resistance: 120Ω 1%
- Features:
- Green LED: NET-S ≥ 9.05V ± 1%
- Red LED: NET-S < 9.05V ± 1%
- Mechanical:
- Male Contact: Brass, gold plated
- Female Contact: Phosphor bronze, gold plated
- Male Contact Carrier: PA66 (30% Glass filled), black
- Female Contact Carrier: PA66 (30% Glass filled), black
- Male Contact Polarisation: Standard M12 -“A”- polarisation
- Female Contact Polarisation: Standard M12 -“A”- polarisation
- Male Mating Thread: M12
- Female Mating Thread: M12
- Male Screw Cap: Brass, nickel plated
- Female Screw Cap: Brass, nickel plated
- Housing: PVC black
- Weight: 23.6g
- Flammability Rating:
- UL94 V0
-
