SKU:
CN AC-NGX-1-USB
€ 334,66
1-2 weeks delivery time
-
+
The NGX-1 NMEA 2000 Dual Gateway USB provides similar functionality as the ISO version but includes the added benefit of USB connectivity, offering plug-and-play integration with PCs. It supports NMEA 0183 and NMEA 2000 conversion, making it a practical solution for users needing USB-based data transfer.
- Description
- Ask a Question
-

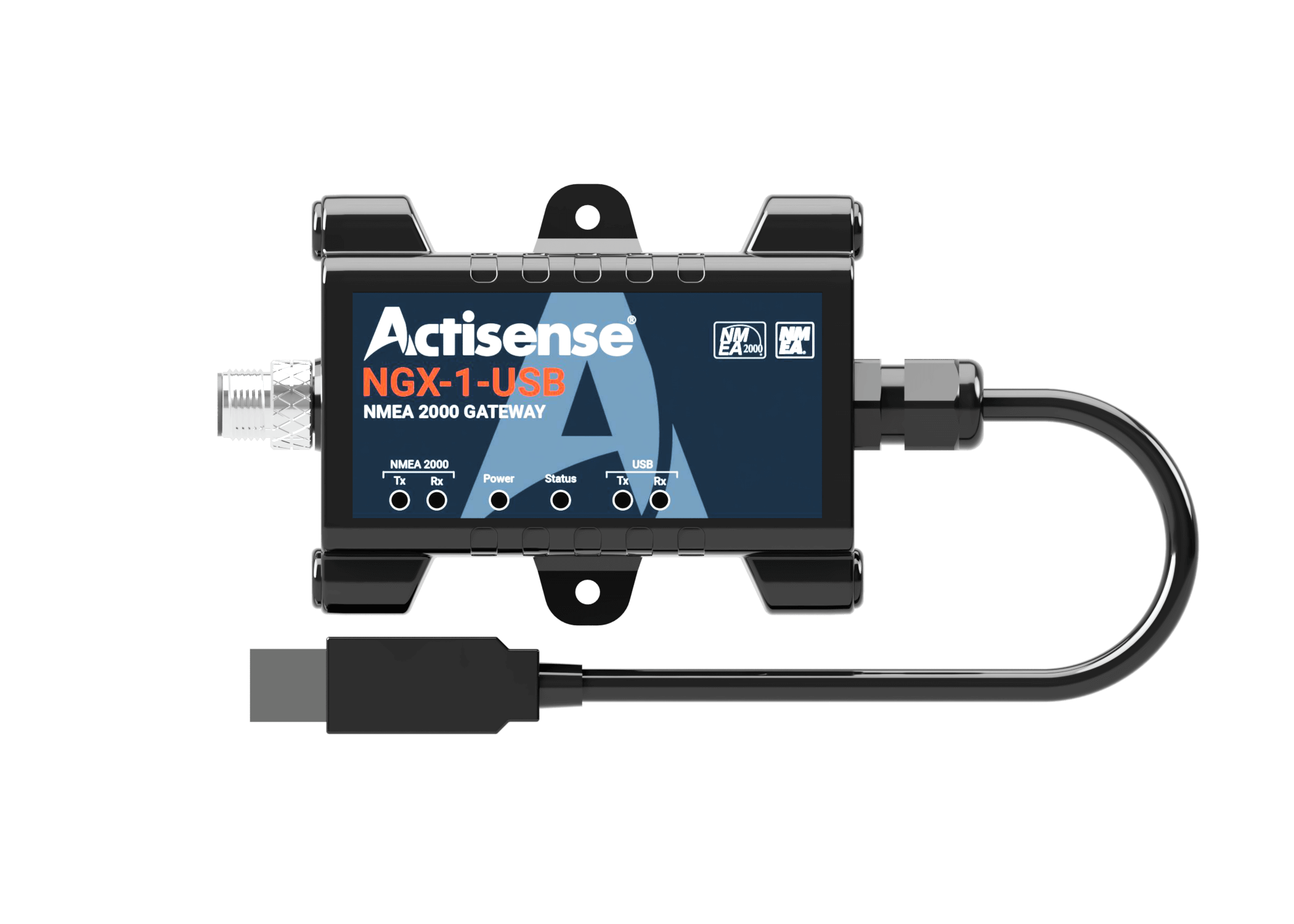

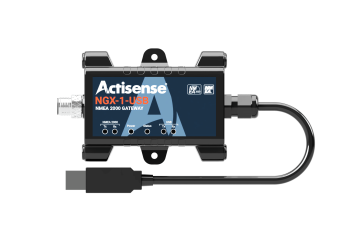

NGX-1 NMEA 2000 Dual Gateway USB
The NGX-1 NMEA 2000 Dual Gateway USB offers a similar range of features as the ISO variant, but with the added convenience of USB connectivity. This version is ideal for users who require plug-and-play connectivity to a PC. The gateway provides efficient data conversion between NMEA 0183 and NMEA 2000 protocols and is compatible with USB 1.1, 2.0, and 3.0 ports.
- Power Supply:
- Supply Voltage (NMEA 2000 Port): 9 to 30V DC
- Supply Current (NMEA 2000 Port): 62mA @ 9V DC
- Load Equivalent Number (LEN): 2
- Power Supply (USB Variant):
- Supply Voltage (NMEA 2000 Port): 9 to 30V DC
- Supply Current (USB Host Port): 10mA @ 5V DC
- Supply Current (NMEA 2000 Port): 62mA @ 9V DC
- Load Equivalent Number (LEN): 2
- USB Port Compatibility:
- Compatibility: USB 1.1, 2.0, and 3.0
- Speed/Baud Rate: 4800 to 230400 Baud
- Connectivity: Male type A plug moulded onto cable
- Cable Length: 1.8m
- Power Supply:
-
